REPLACEMENT AND ADJUSTMENT
SM 17
B478/B513/B531
Finisher/
Jogger Unit/
Punch Unit
B478/B51
3/
B531

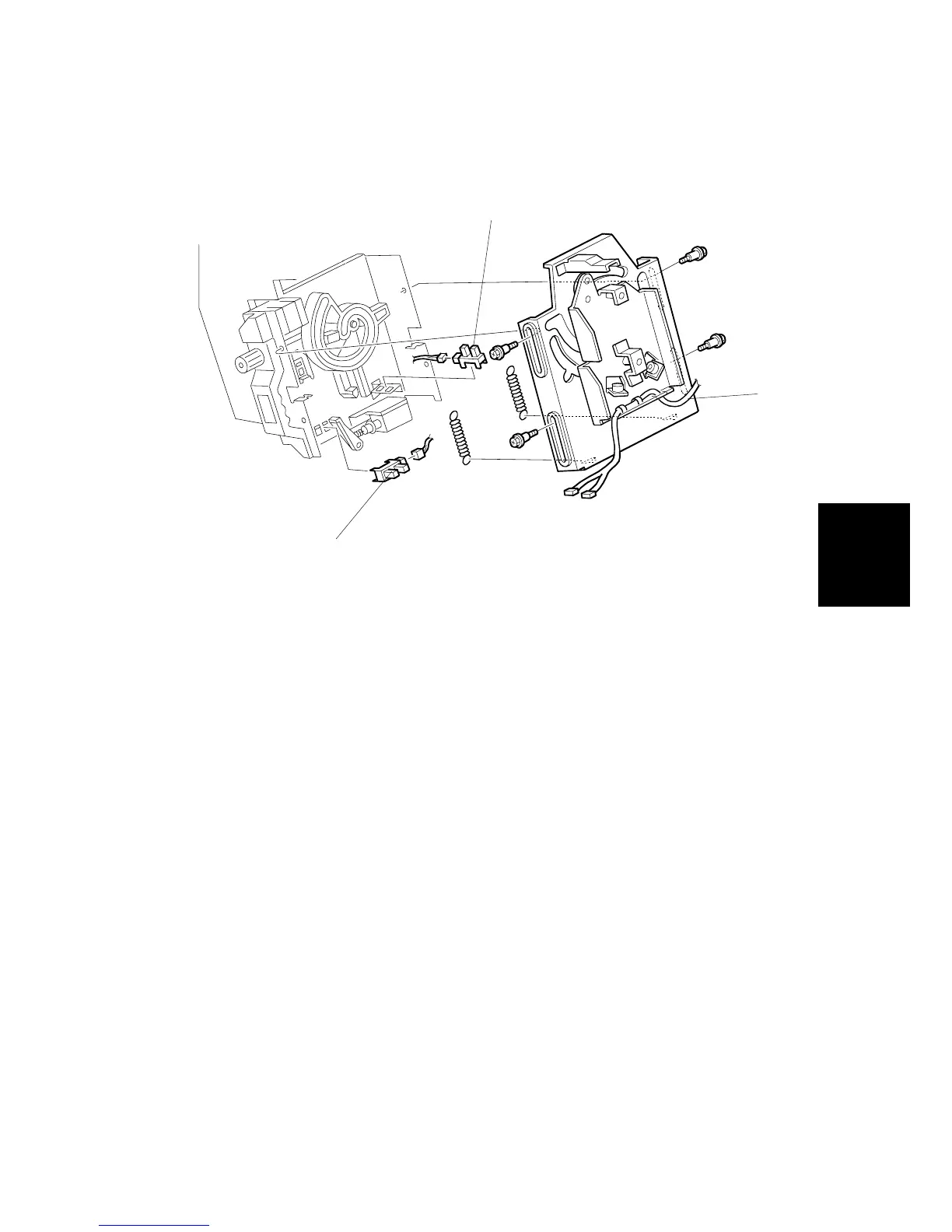

3.5.7 STAPLER
ROTATION
HP
AND STAPLER RETU
RN SENSORS
1.
Remove the stapler unit. (See next page.)
2.
Remove the stapler mount bracket [A] (
x 4, springs x 2).
3.
Replace the stapler rotation HP sensor [B] (
x 1).
4.
Replace the stapler
return sensor [C] (
x 1).
B478R519.
W
MF
[A]
[C]
[B]
894
896
