STAPLER
SM 39 B468/B469/B674
3000-Sheet
Finisher
B468/B469/
B674
2.8.3 FEED OUT

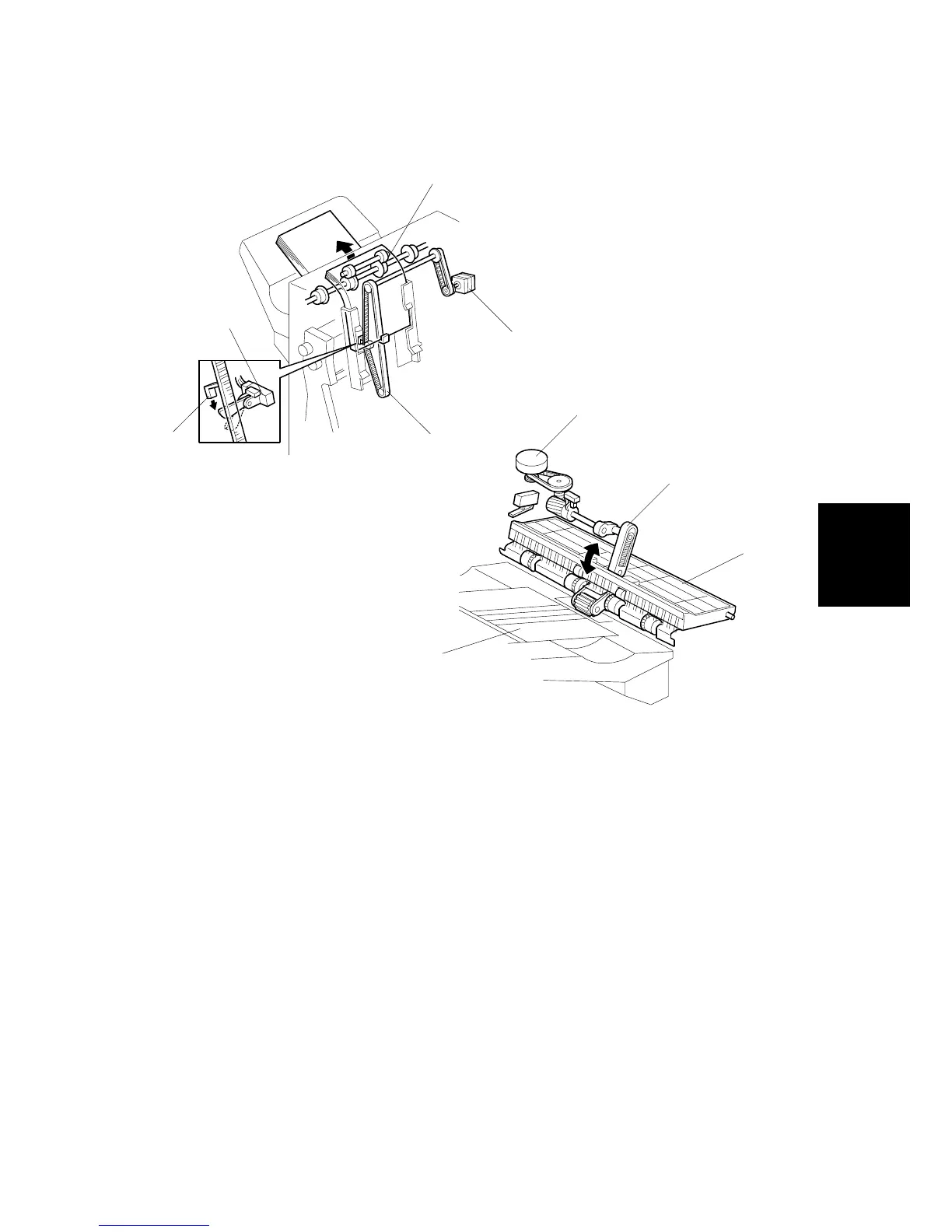

After a set has been stapled, the stack feed out motor [A] switches on and drives
the stack feed out belt [B]. The pawl [C] on the belt lifts the stapled stack and
transports it to the exit rollers [D]. There are two pawls on the belt, to increase
productivity.
The exit guide plate [E] remains open until the leading edge of the stapled sheets
has passed the prescribed distance from the tray exit rollers, then the exit guide
plate closes, and the stapled sheets feed out to the tray [F].
A cam and pin [G], powered by the guide plate motor [H], opens and closes the
guide plate.
The stack feed out motor stops for 300 ms to allow the exit rollers to feed out the
stapled sheets to the output tray. This pause prevents the copies from pushing out
too far onto the tray.
The stack feed out motor switches on again until the pawl actuates the stack feed
out belt HP sensor [I].
