PAPER FEED
SM 3-109 B064 Series/B140 Series/G126
Replacement
Adjustment

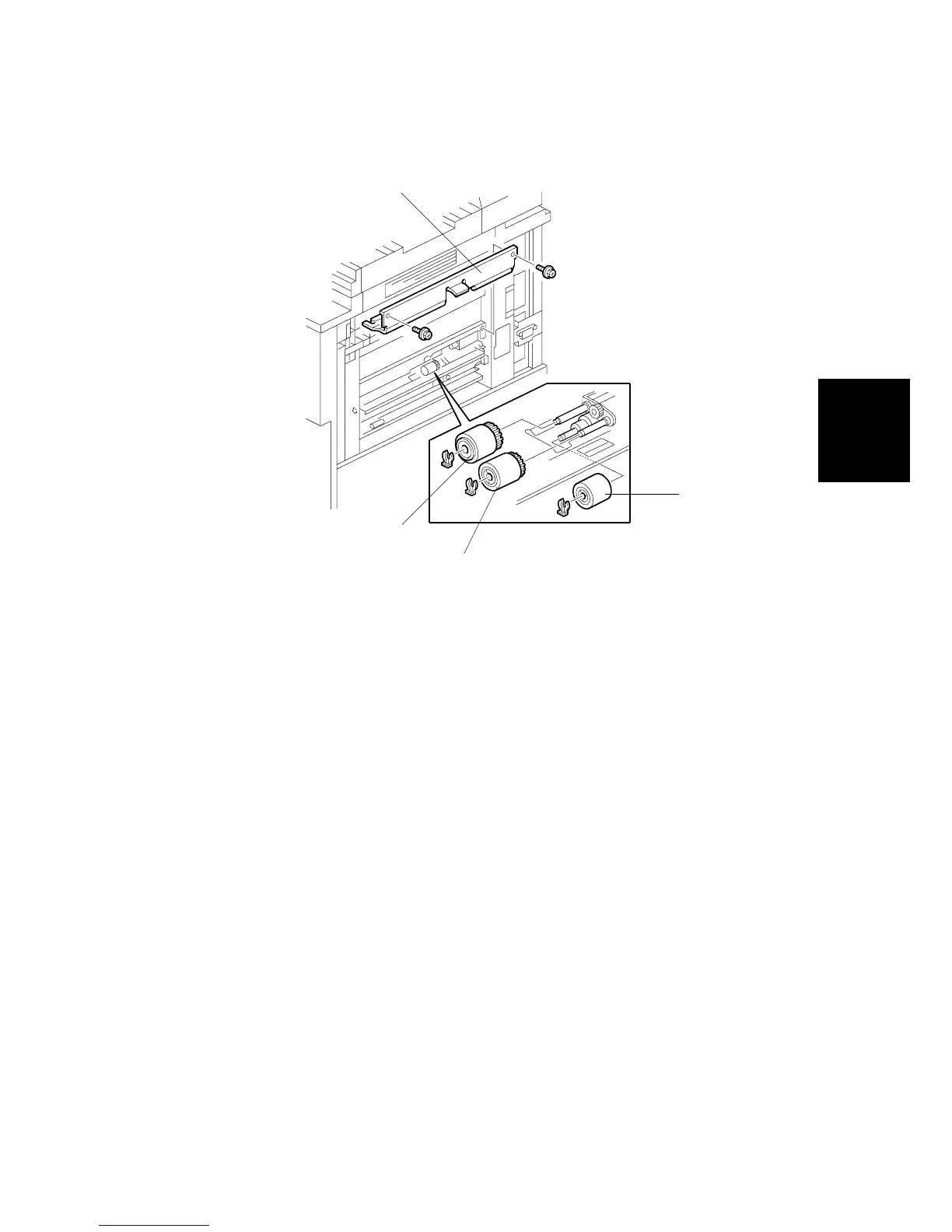

3.11.12 BY-PASS TRAY ROLLERS
Right covers ( 3.3.3)
By-pass tray ( 3.11.11)
[A]: By-pass cover ( x 2)
[B]: Feed roller ( x 1)
[C]: Pick-up roller ( x 1)
[D]: Separation roller ( x 1)
NOTE:
1) Even though the FRR (Feed Roller Replacement) components for the
tandem tray (Tray 1), universal trays (Tray 2, Tray 3) and the by-pass
tray are identical, the rollers are not interchangeable.
2) Do not touch the surface of new rollers during replacement.
B140R846.WMF
[A]
[B]
[C]
[D]
To Next Page
