Z-FOLDING UNIT B660
SM 1-77 B064 Series/B140 Series/G126
Installation
1.15.2 INSTALLATION PROCEDURE
CAUTION
Always switch the machine off and unplug the machine before doing any of
the following procedures.
Before You Begin
• Do the installation procedure for the finisher but do not dock it to the machine.
The Z-folding unit must be installed between the finisher and the main machine.
• Do the installation for the cover interposer tray (if necessary).
• If the finisher is already installed, disconnect the finisher from the main machine.
(If the cover interposer tray is installed on the finisher, it is not necessary to
remove the cover interposer tray.)

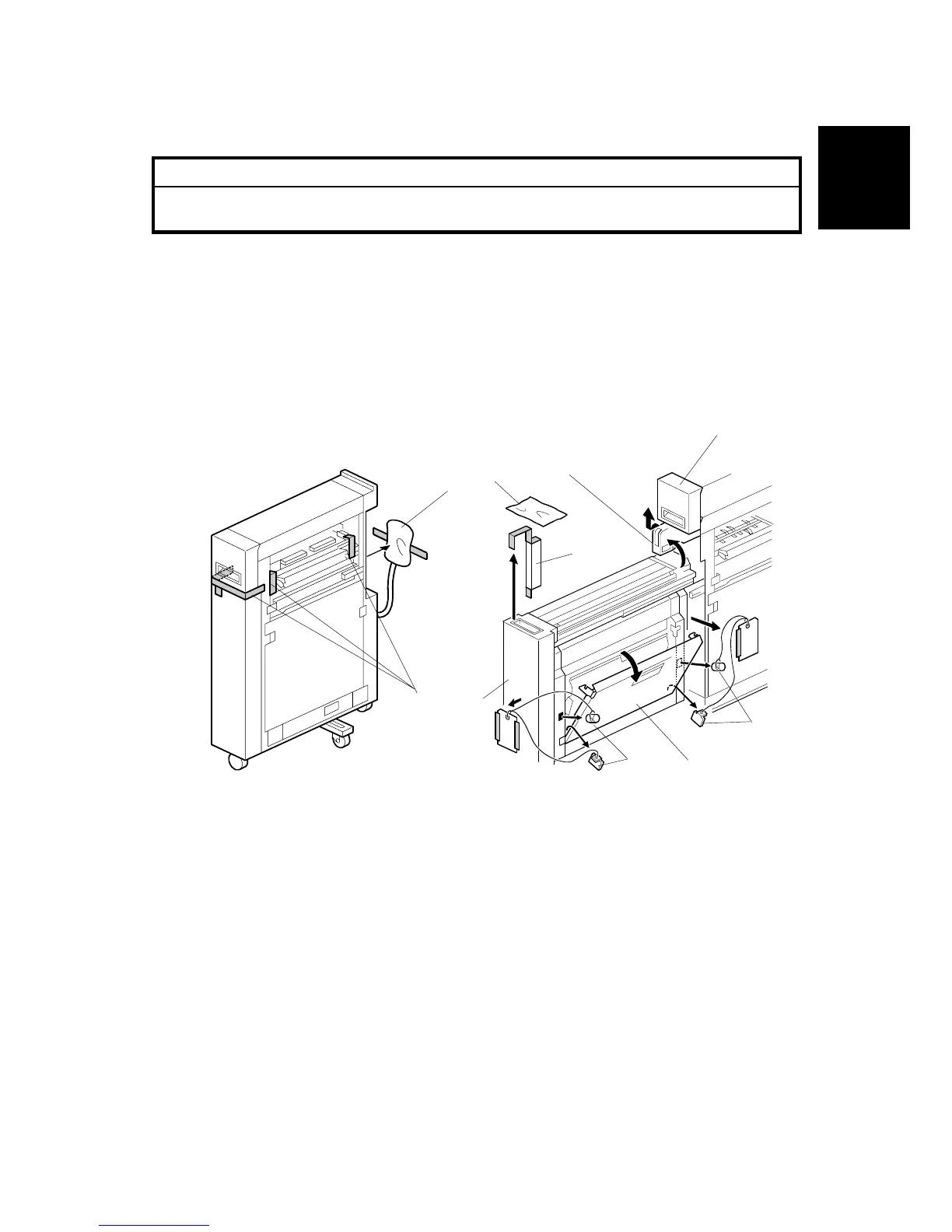

Unpacking
1. Detach the head of the I/F connector [A].
2. Remove all tape [B] from unit.
3. Open the front door [C].
4. Raise the horizontal transport plate [D] and remove the cushion [E].
5. Pull out the Z-folding mechanism [F] and remove the cushion [G].
6. Open the right vertical transport cover [H].
7. Remove four spacers [I] by pulling on the string.
B660I002.WMF
B660I001.WMF
[A]
[C]
[D]
[F]
[B]
[E]
[H]
[I]
[G]
[I]
To Next Page
