Ricoh 4051 Service Manual

Z-FOLDING UNIT B660
B064 Series/B140 Series/G126 1-76 SM
1.15 Z-FOLDING UNIT B660
The Z-Folding unit can be installed only on the 3000-Sheet Finisher B674.
1.15.1 ACCESSORY CHECK

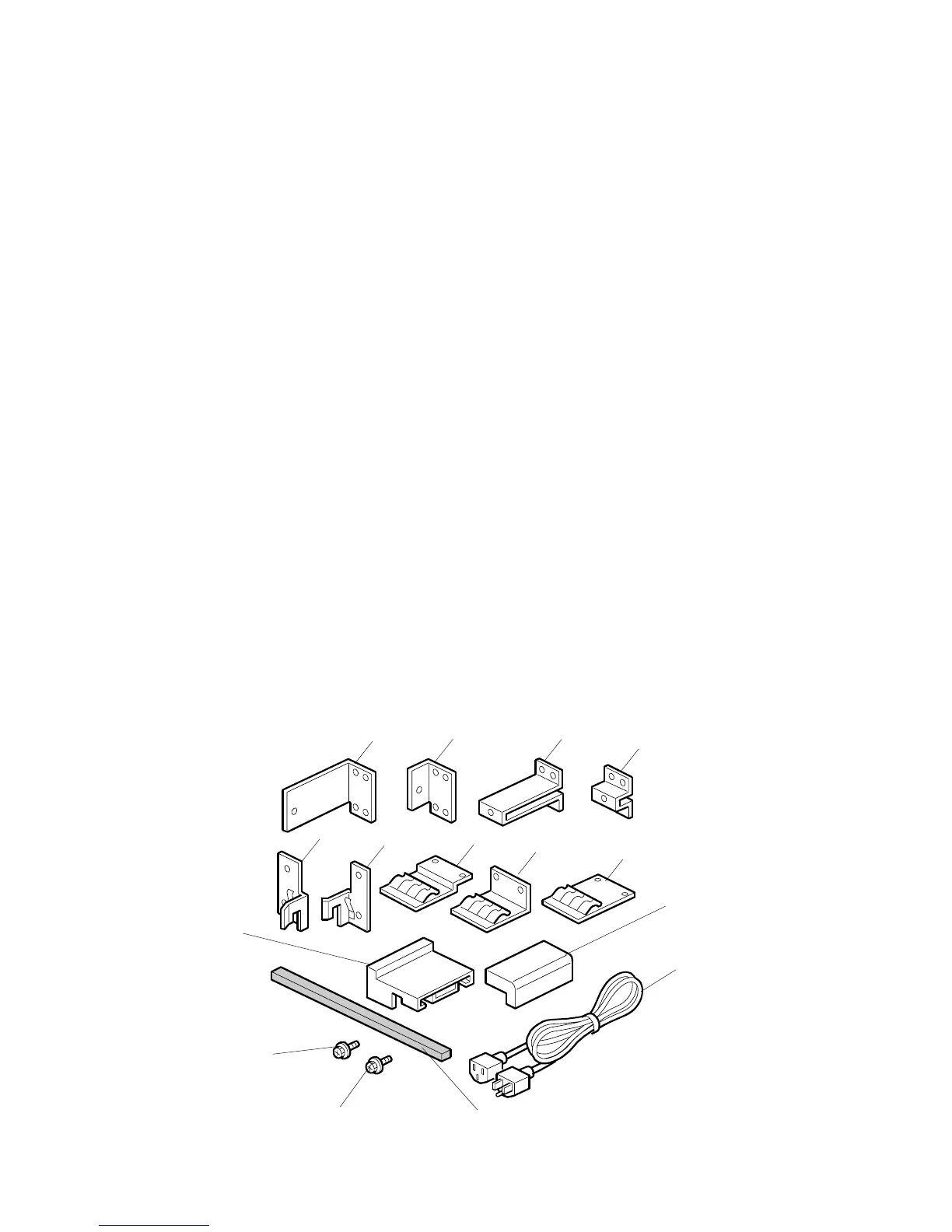

Check the accessories and their quantities against this list:
Description Q’ty
1. Lock Bracket – Rear (Cover Interposer Tray) ........................ 1
2. Lock Bracket – Rear ............................................................. 1
3. Lock Bracket – Front (Cover Interposer Tray)*1 .................... 1
4. Lock Bracket – Front*1 .......................................................... 1
5. Ground Plate (Cover Interposer Tray) .................................. 1
6. Ground Plate (Z-folding unit) ................................................ 1
7. Ground Plate (Finisher or Cover Interposer Tray) ................ 1
8. Right Docking Bracket ........................................................... 1
9. Left Docking Bracket ............................................................. 1
10. Front Spacer *2 ..................................................................... 1
11. Rear Spacer *2 ...................................................................... 1
12. Power Cord............................................................................ 1
13. Sponge Strip.......................................................................... 1
14. Screws M3 x 6 ....................................................................... 8
15. Screws M4 x 6 ....................................................................... 8
*
1
Items 3, 4, are not required for the B706 (SR841) with B070/B071.
*
2
Items 10, 11 are not required for the B674 (SR861)
B660I003.WMF
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
