LASER UNIT
SM
3-29
B06
4 Series/B140 Series/G126
Replac
ement
Adjustment

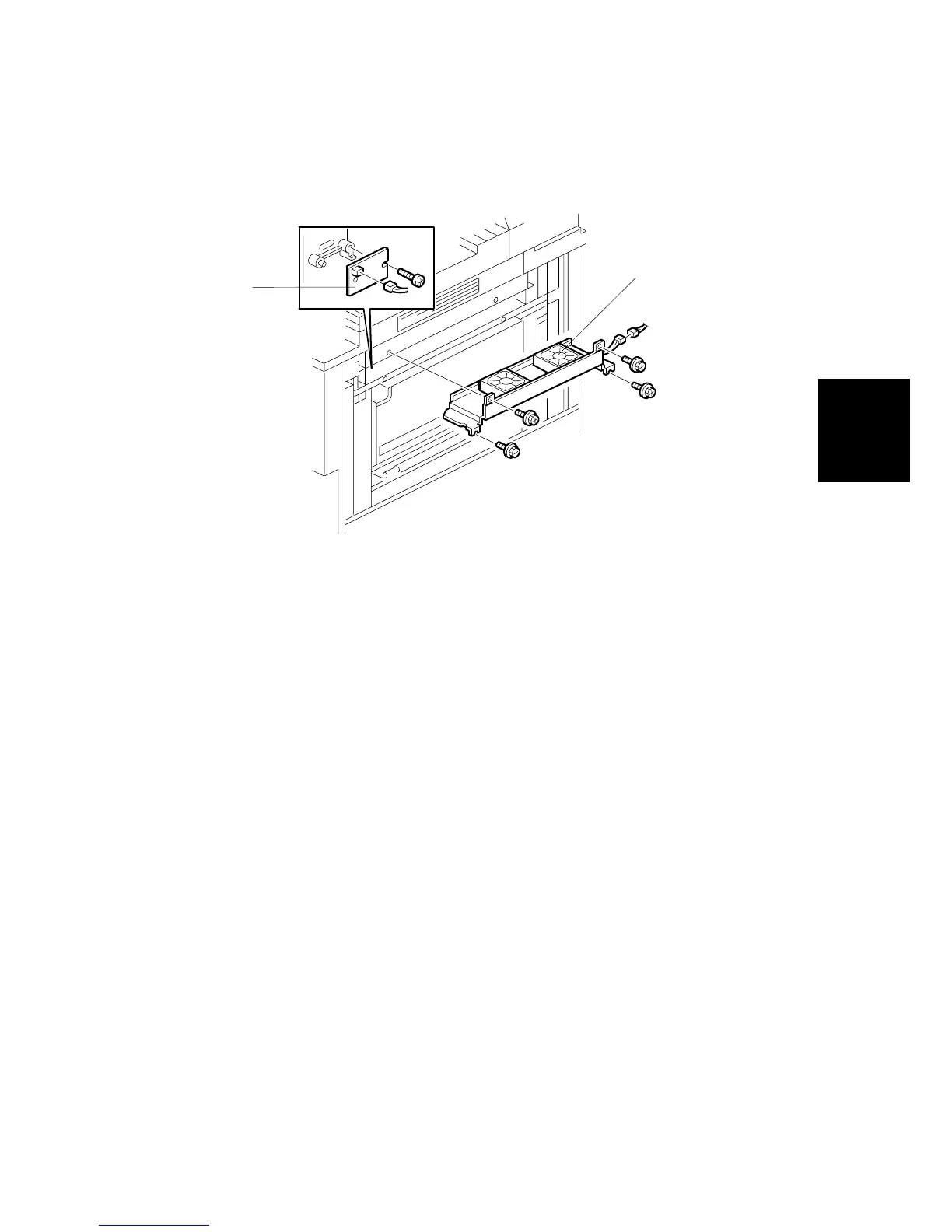

3.5.3 LASER
SYNCHRONIZATIO
N DETECTOR REPLACEMENT
Remove the right side cover (
x 2)
NOTE:
If the optional LCT is installed, disconnect it (
x 1).
[A]:
Development unit fans (
x 4,
x 1)
[B]:
Synchronization detector (
x 1,
x 1)
After replacement, set SP1002-
001~007 (Side-to-Side Regist
ration) to the defaults.
B140R932.W
MF
[A]
[B]
202
204
