PAPER FEED
SM 3-103 B064 Series/B140 Series/G126
Replacement
Adjustment
3.11.7 PICK-UP, FEED, SEPARATION ROLLER REPLACEMENT

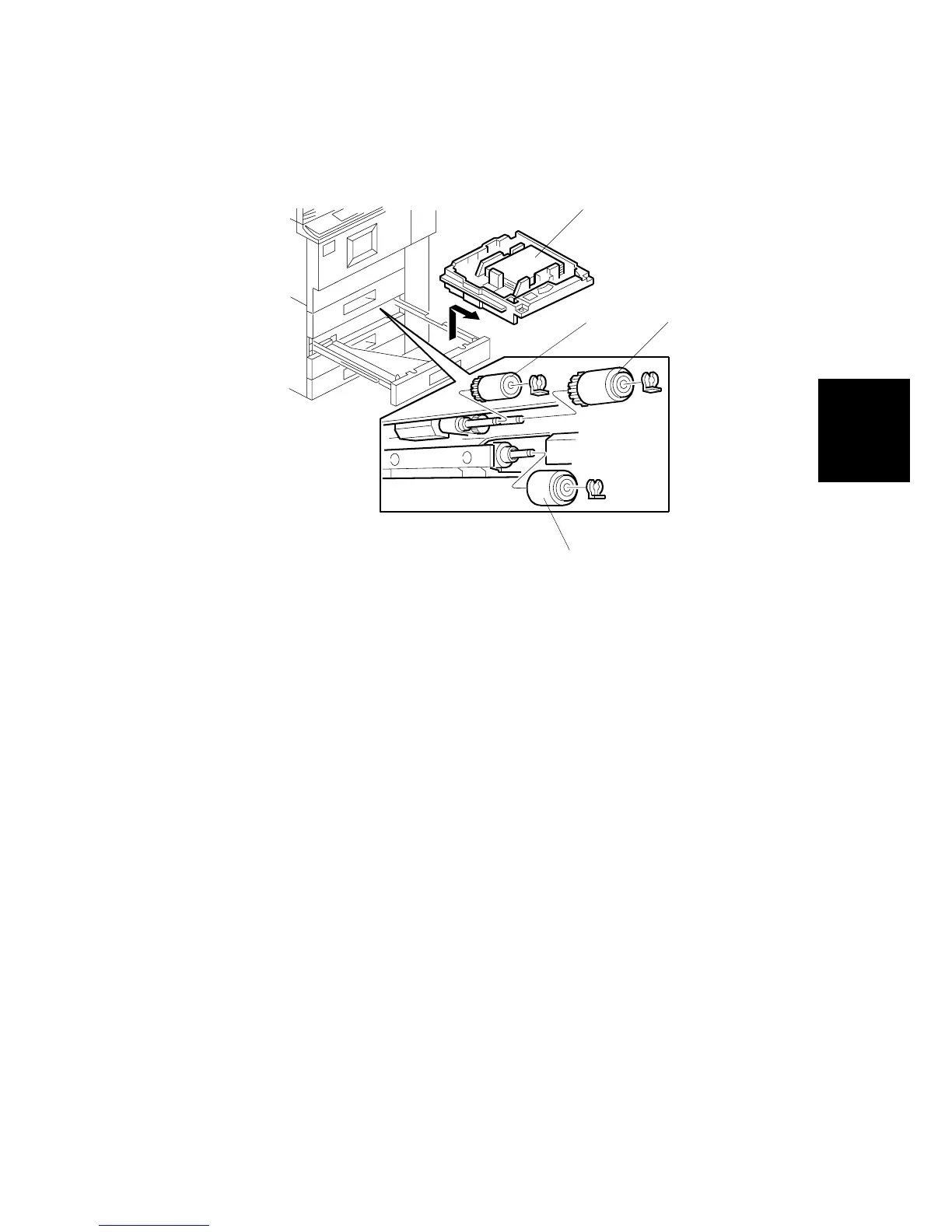

[A]: Remove the tray.
[B]: Feed roller ( x 1)
[C]: Pick-up roller ( x 1)
[D]: Separation roller ( x 1)
NOTE:
1) The operation of the FRR (Feed Roller Replacement) components for
the tandem tray (Tray 1), universal trays (Tray 2, Tray 3), by-pass tray,
and ADF are similar. However, the only rollers that are interchangeable
are the tandem and universal tray rollers (Trays 1, 2, 3).
2) Do not touch the surface of new rollers during replacement.
B140R837.WMF
[A]
[B]
[C]
[D]
