FUSING UNIT
SM
3-67
B064 Series/B140 Series/G126
Replac
ement
Adjustment
3.9.6

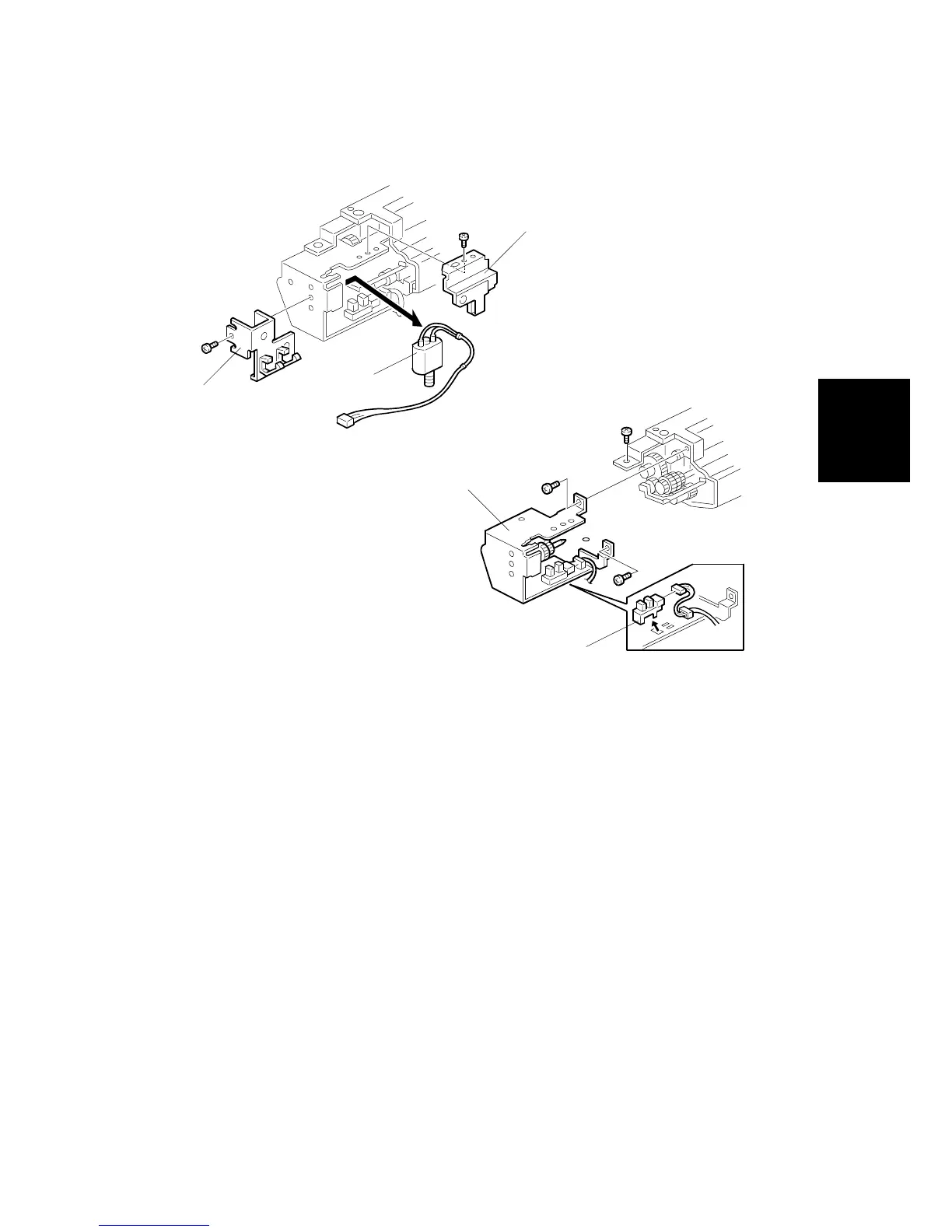

WEB MOTOR AND WEB END SENSOR
Web unit and end cover (
3.9.5)
[A]: Bracket
(
x 1)
[B]:
Web motor positioning bracket (
x 1)
[C]: Web
motor
[D]:
Web motor/sensor mount (
x 3)
[E]:
Web end sensor (
x 1, harness x 1)
NOTE:
At reassembly, make sure that the har
ness of the web driver motor is not
pinched by the fusing inner cover
B140R988.W
MF
B140R989.
W
MF
[A]
[B]
[C]
[D]
[E]
240
242
