MFP OPTIONS: B064 SERIES

SM 1-101 B064 Series/B140 Series/G126

Installation

Installing the Hardware

1. Remove the slot cover [A] ( x 2).

2. Remove the bracket [B] and attach the MLB panel [C].

3. Attach the File Format Converter board [D] to the controller board ( x 2).

4. Replace the controller board cover and rear cover.

5. Turn the main switch ON.

6. Do a network function Memory Clear (SP5801-010).

7. Do an NCS function Memory Clear (SP5801-011). This resets the network

password to “password”.

NOTE: This step is necessary to make sure that the password is reset

correctly.

8. Input these default values manually (SP5836).

SP Number Value SP Number Value

5836-001 0 5836-082 1

5836-002 0 5836-083 1

5836-072 0 5836-085 1

5836-073 0 5836-086 2

5836-075 0 5836-091 50

5836-076 1

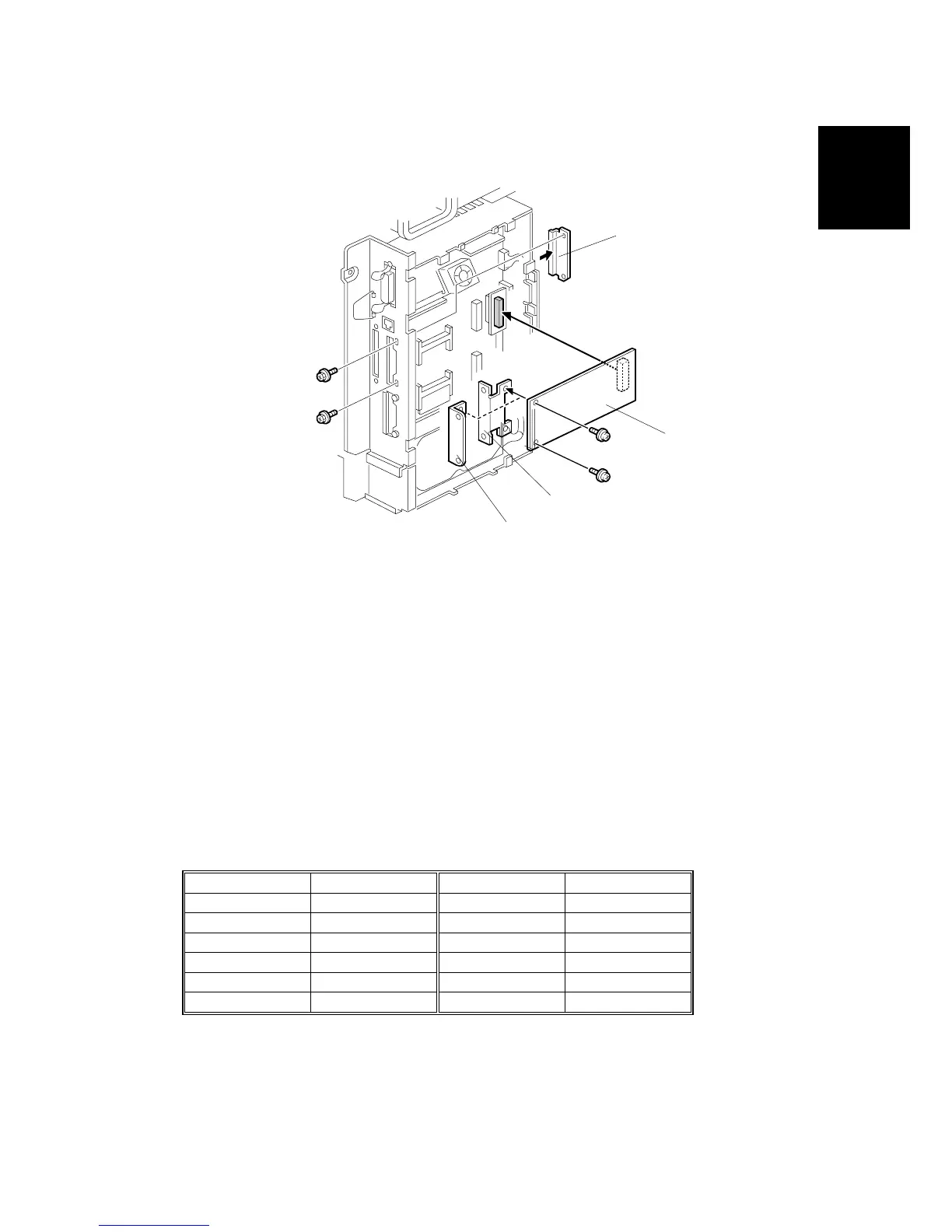

B110I104.WMF

[A]

[B]

[C]

[D]
