COPY CONNECTOR KIT (B328-03) FOR B140 SERIES
SM
1-61
B06
4 Series/B140 Series/G126
Installation
Installation
1.
Remove the rear cover.
2.

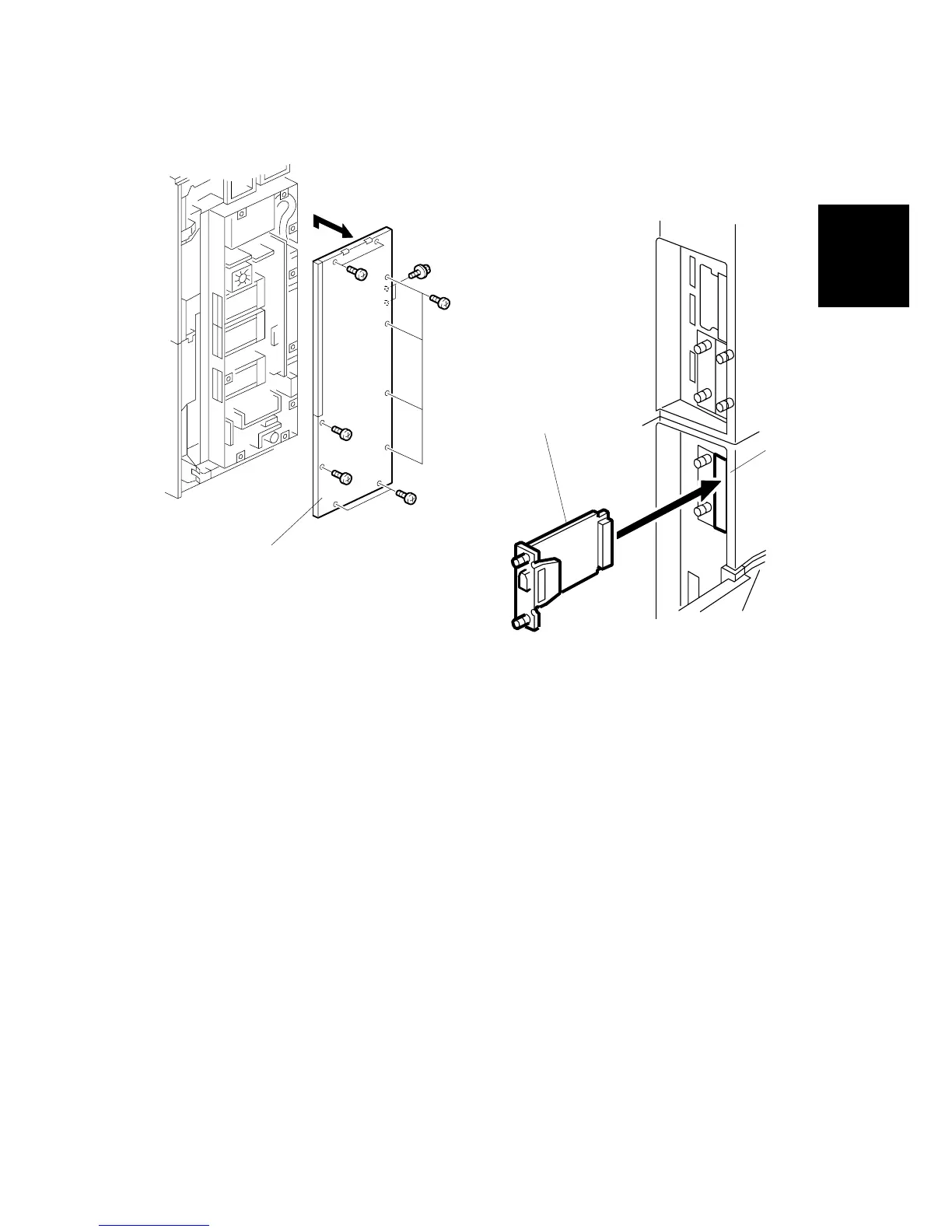

Remove the controller box cover [A] (
x 12).
3.
Remove the cover from Slot A2 [B] (
x 2).
4.
Put the Copy Connector Kit board [C] in
Slot A2 and tighten the knob screws (x
2).
B659I103.
WMF
B661I1
10.WMF
[B]
[C]
[A]
94
96
