JOGGER TOP FENCE MOTOR (B674 ONLY)
SM 11
B468/B469/B674
3000-Sheet
Finisher
B468/B46
9/
B674

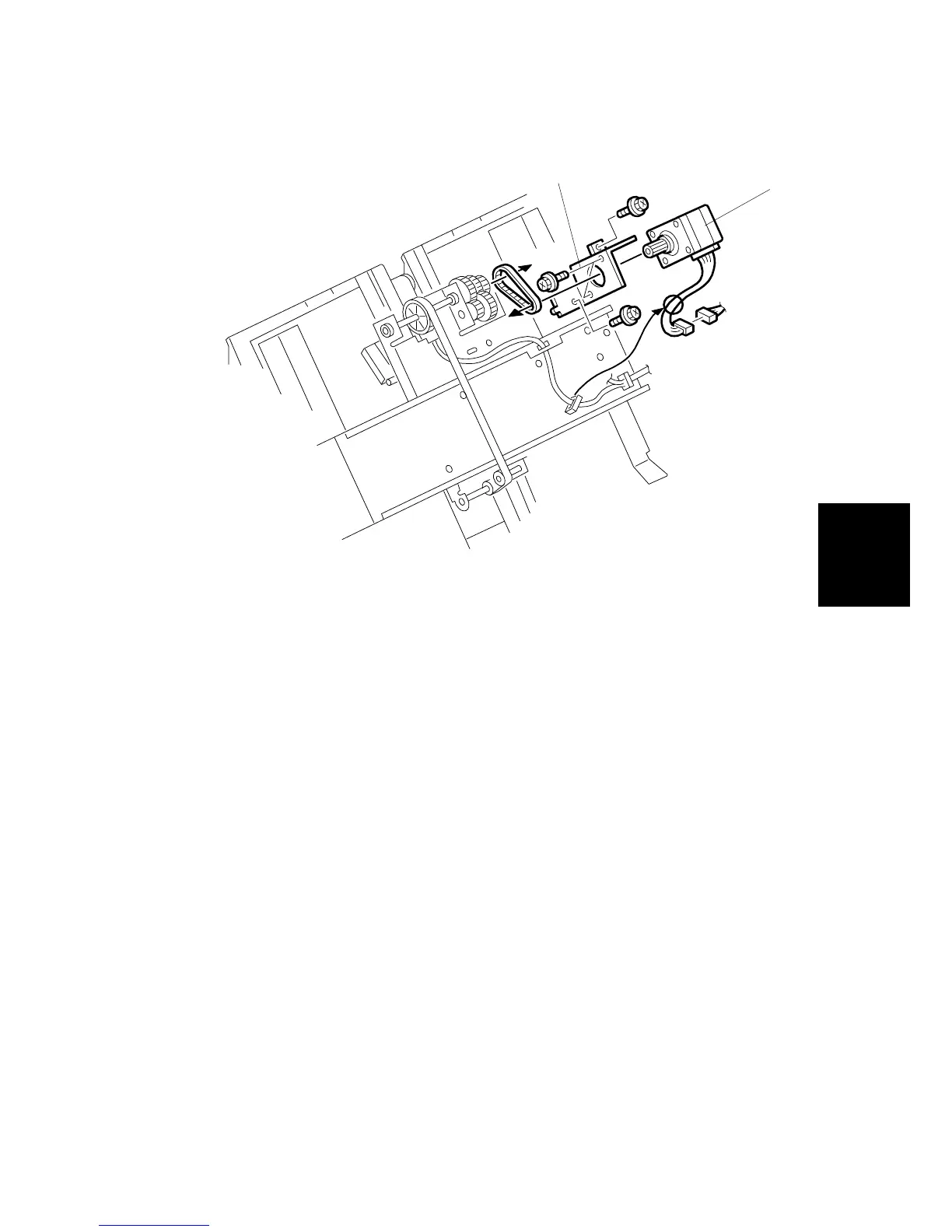

1.11 JOGGER TOP FENCE MOTOR (B674 ONLY)
1.
Open the front door and pull
out the stapler tray unit.
2.
Remove the Z-fold jogger unit cover (
x 2)
3.
Remove the motor bracket [A] (
x 2, timing belt x 1)
4.
Remove the jogger top fence motor [B] (
x 2,
x 1,
x 1)
B468R901.W
MF
[A]
[B]
799
801
