DEVELOPMENT AND TONER SUPPLY
B064 Series/B140 Series/G126 6-64 SM
6.9 DEVELOPMENT AND TONER SUPPLY
6.9.1 OVERVIEW

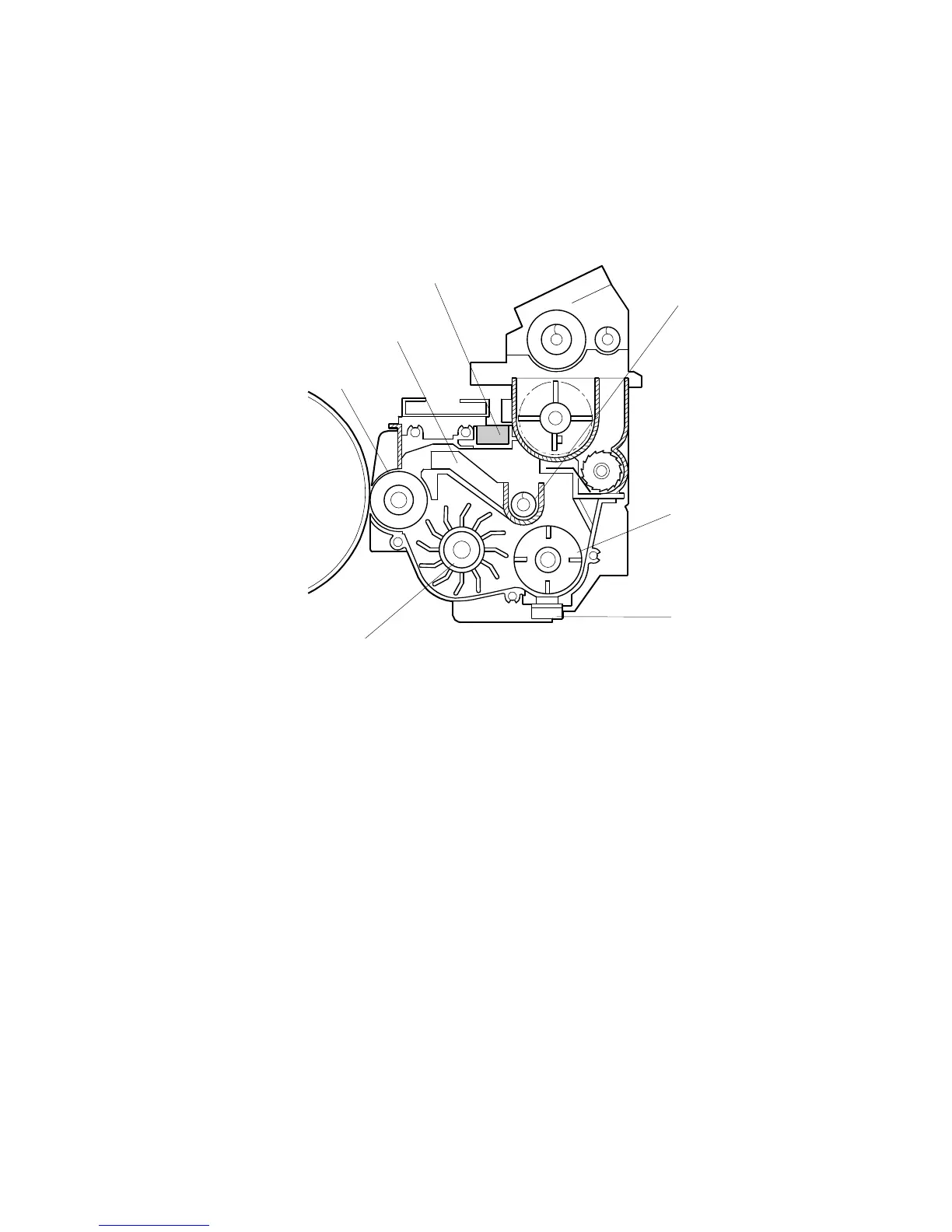

Development Unit
1. Development Filter
2. Toner Auger
3. Developer Agitator
4. TD Sensor
5. Paddle Roller
6. Development Roller Sleeve
7. Separator
This machine uses dual-component development.
The development unit has its own motor.
The toner concentration is monitored with the ID sensor and TD sensors.
The toner auger, separator, developer agitator, and paddle roller mix and transport
the developer and toner. The development power pack applies development bias
to the development roller.
B140D945.WMF
1
2
3
4
5
6
7
