TRANSFER BELT UNIT

SM 3-59 B064 Series/B140 Series/G126

Replacement

Adjustment

3.8.5 TRANSFER POWER PACK

Transfer belt unit ( 3.8.1)

[A]: Wire ( x 1) (all wire guides)

[B]: Ground terminal wire (wire guide x 1)

• This terminal wire does not disconnect from the power pack.

• Loosen the two left screws of the transfer belt lift solenoid [C], and remove

the top screw [D] to free the ground terminal wire.

[E]: Transfer current terminal wire (wire guides x 2)

[F]: Transfer power pack ( x 1)

• Disconnect the two standoffs on the right edge of the power pack and

remove.

Re-installation

• Confirm that the left edge of the power pack is below the tabs on the left.

• Confirm that the transfer current terminal wire is below the wire guides on the

right.

• Pass the ground terminal wire under the top connector of the solenoid bracket

and tighten all the screws of the solenoid bracket.

• Make sure the wire is below all the wire guides at the top.

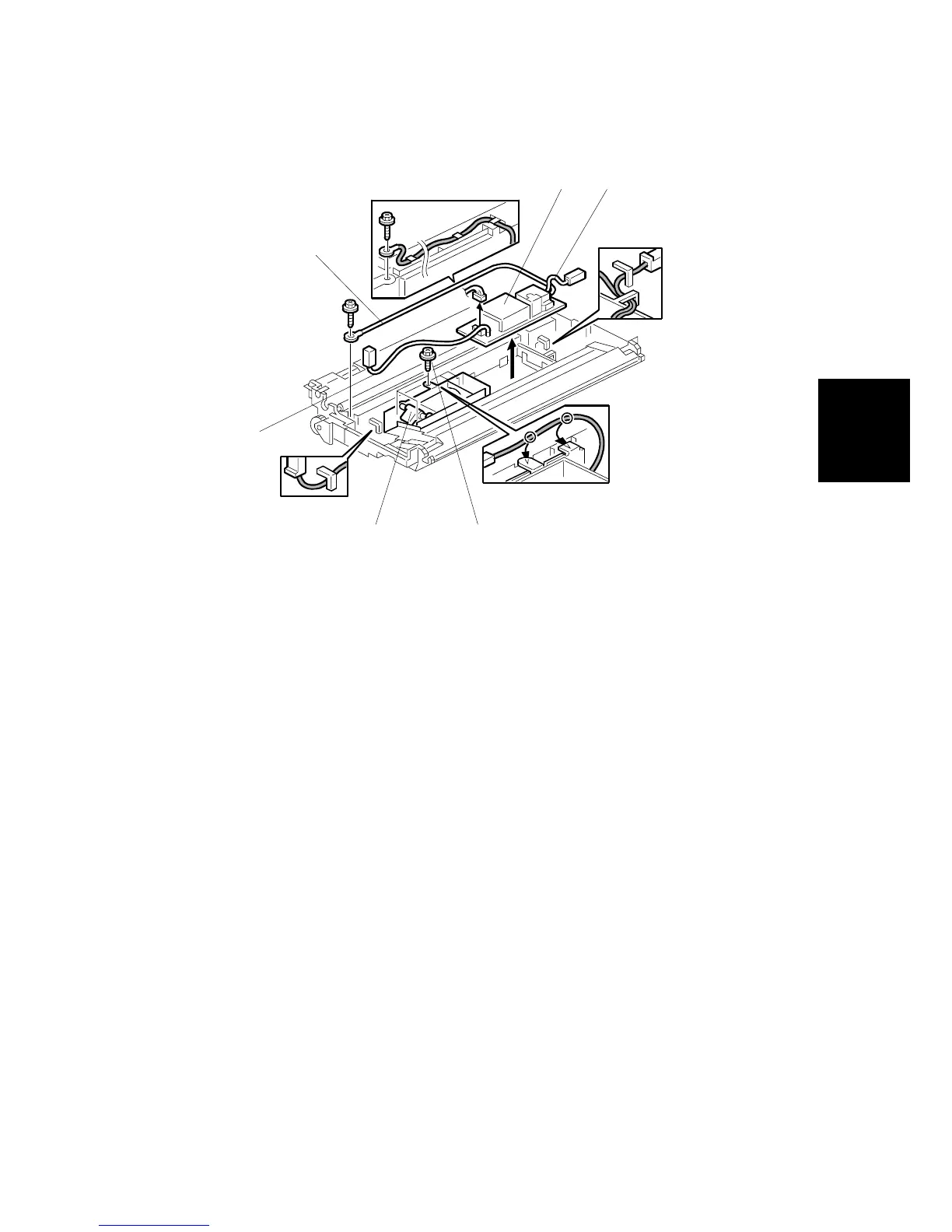

B140R978.WMF

[A]

[B]

[C]

[D]

[E][F]
