Engine Mechanical: 1D-9

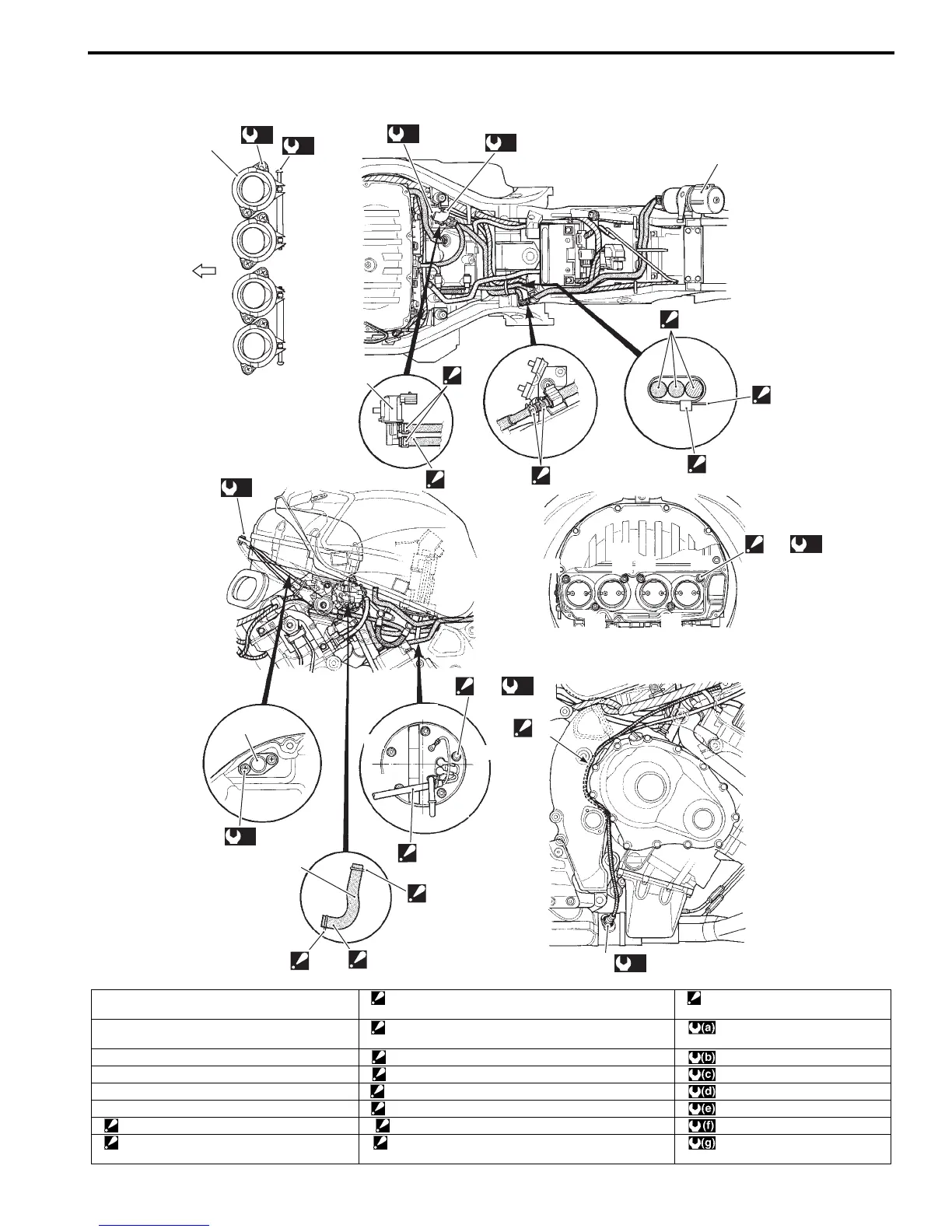

Throttle Body Construction
B947H11406009
1
2
3
5
“I”
“C”
“D”
“G”
“E”
“F”
4
“H”
“H”
“A”
“G”
(a)
(b)
(c)
(d)
(d)
(d)
(e)
(f)
FWD
“K”
“B”
“7”
“1”
“1” “6”
“3”
“2”
“2”
“3”
“4”
“4”
“6”
“5”
“5”
“J”
(g)
6
I947H1140253-03
1. Intake pipe “C”: Face the end of clamps upward and keep clearance
from the seat rail and fuel tank.
“K”: Face the clamp end right side.
2. EVAP system purge control solenoid valve
(E-33 only)
“D”: Arrange the hose and wiring harnesses in parallel to
the frame bridge.
:8.5 N⋅m (0.85 kgf-m, 6.5 lbf-ft)
3. EVAP canister (E-33 only) “E”: Yellow paint should face downward. : 1.5 N⋅m (0.15 kgf-m, 1.0 lbf-ft)
4. IAT sensor “F”: Face the clamp end backward. : 7 N⋅m (0.7 kgf-m, 5.0 lbf-ft)
5. ISC valve hose “G”: Face the clamp end downward. : 10 N⋅m (1.0 kgf-m, 7.0 lbf-ft)
6. HO2 sensor “H”: Tighten the bolts in the ascending of numbers. : 1.3 N⋅m (0.13 kgf-m, 1.0 lbf-ft)
“A”: Face the clamp end left side. “I”: Route the fuel pump lead wire above the fuel nipple. : 4.3 N⋅m (0.43 kgf-m, 3.0 lbf-ft)
“B”: Yellow marking should face upward. “J”: Pass the HO2 sensor lead wire between the frame
and engine.
: 25 N⋅m (2.5 kgf-m, 18.0 lbf-ft)
