Suzuki GSX-R1000 User Manual

Rear Suspension: 2C-12

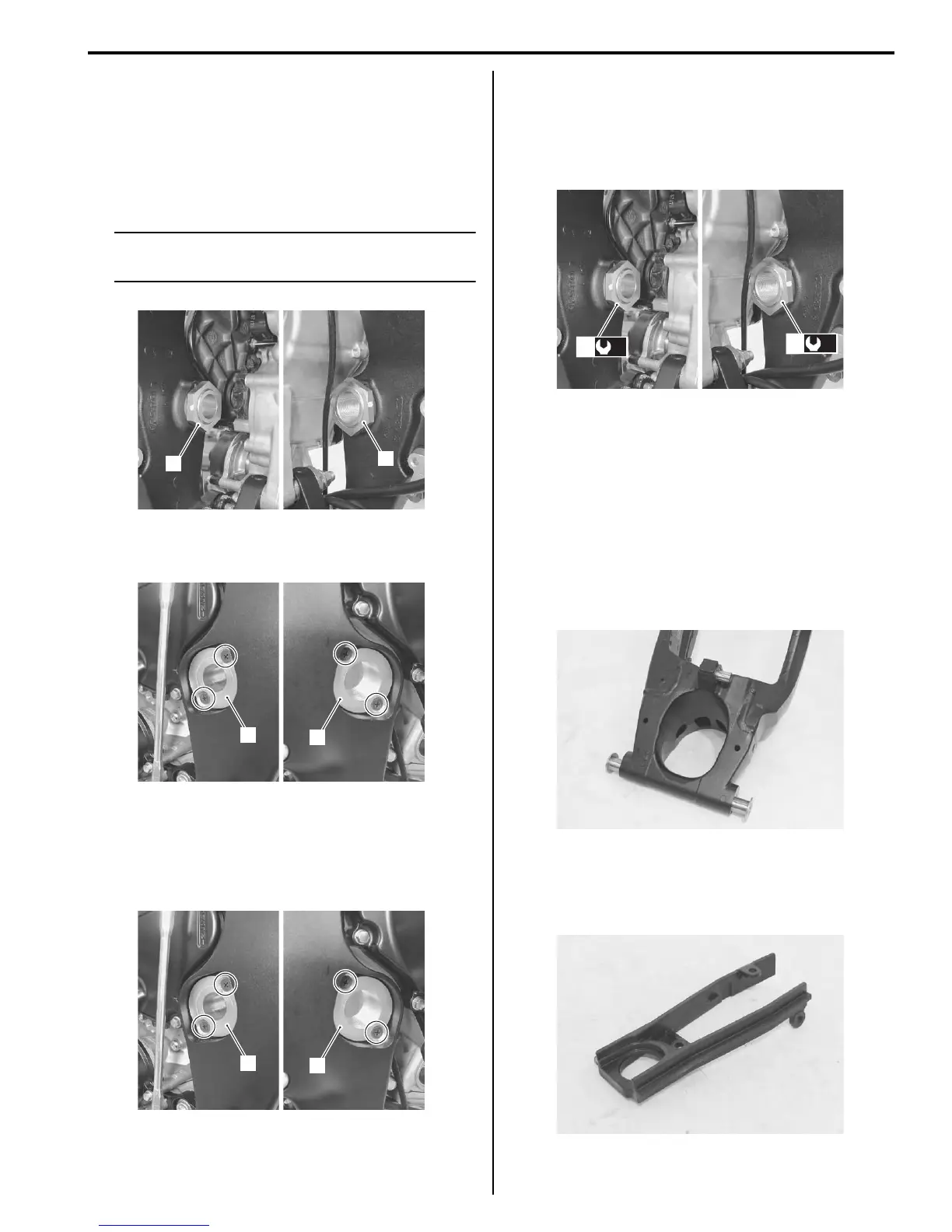

Swingarm Pivot Boss Removal and Installation
B947H12306018
Removal
1) Remove the swingarm. Refer to “Swingarm Removal
and Installation” (Page 2C-9).
2) Remove the swingarm pivot boss nut (1).
NOTE
Remove the swingarm pivot boss only when
replacing it.
3) Remove the swingarm pivot boss (2) by removing its
set screws.
Installation
Install the swingarm pivot boss in the reverse order of
removal. Pay attention to the following points:
• Install the swingarm pivot boss (1).
• Tighten the swingarm boss nut (2) to the specified
torque.
Tightening torque
Swingarm pivot boss nut (a): 65 N·m (6.5 kgf-m,
47.0 lbf-ft)
Swingarm Related Parts Inspection
B947H12306015
Refer to “Swingarm Removal and Installation” (Page 2C-
9).
Spacers
1) Remove the collar and spacer from the swingarm.
2) Inspect the collars and spacer for wear and damage.
If any defects are found, replace them with new
ones.
Chain Buffer
Inspect the chain buffer for wear and damage. If any
defect is found, replace the chain buffer with a new one.
1
1
I947H1230042-01
2
2
I947H1230043-01
1
1
I947H1230044-01
(a)
2
(a)
2
I947H1230045-01
I947H1230046-01
I947H1230047-02
