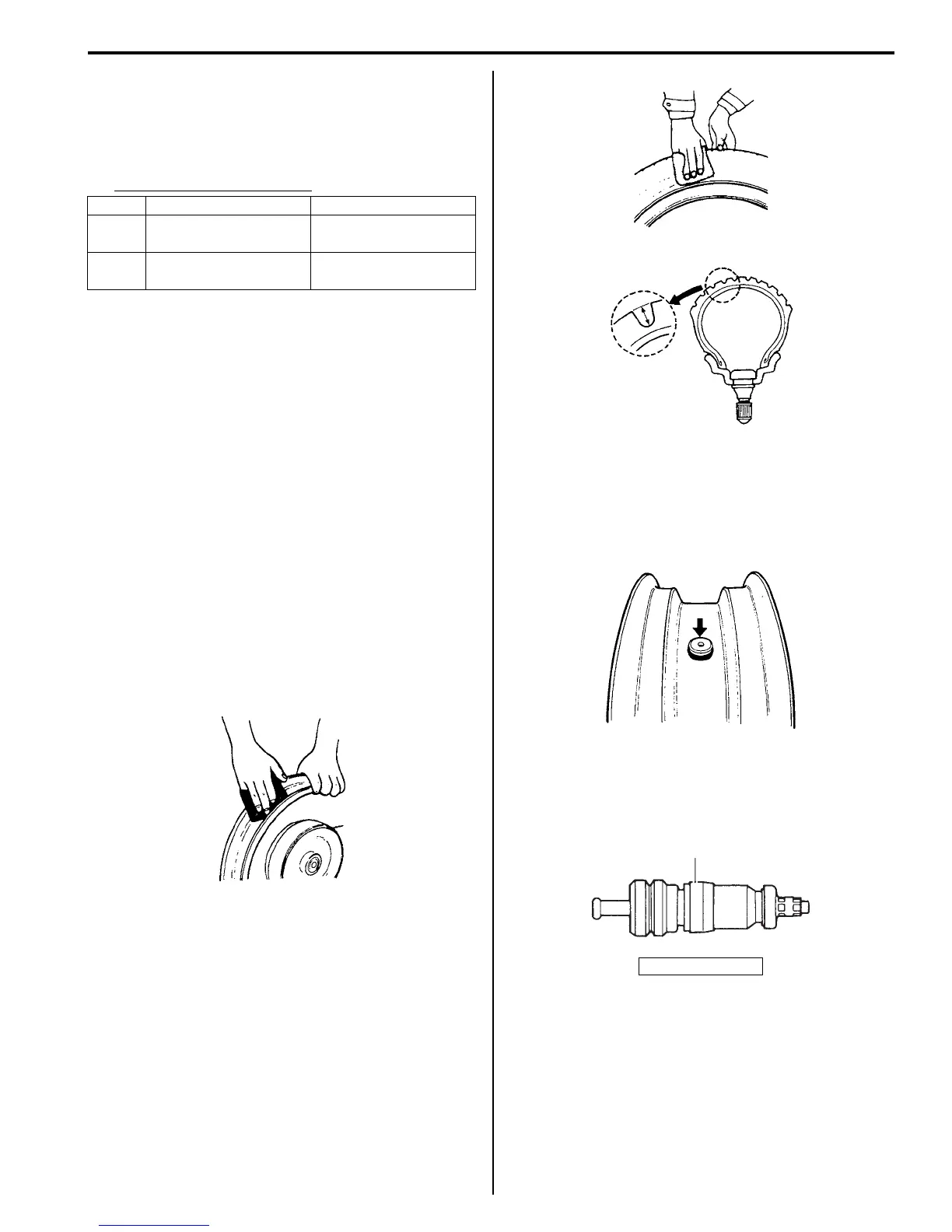

Wheels and Tires: 2D-16
7) When the bead has been fitted properly, adjust the
pressure to specification.
8) As necessary, adjust the tire balance. Refer to
“Wheel Balance Check and Adjustment” (Page 2D-
17).
Cold inflation tire pressure
9) Install the mounting drum to the rear wheel.
(For rear wheel)
Refer to “Rear Wheel Assembly Removal and
Installation” (Page 2D-11).
10) Install the wheel assembly. Refer to “Front Wheel
Assembly Removal and Installation” (Page 2D-4)
and “Rear Wheel Assembly Removal and
Installation” (Page 2D-11).
Wheel / Tire / Air Valve Inspection and Cleaning
B947H12406012
Refer to “Tire Removal and Installation” (Page 2D-14).
Wheel
Wipe the wheel clean and check for the following points:
• Distortion and crack
• Any flaws and scratches at the bead seating area.
• Wheel rim runout. Refer to “Front Wheel Related
Parts Inspection” (Page 2D-6) and “Rear Wheel
Related Parts Inspection” (Page 2D-12).
Tire
Tire must be checked for the following points:
• Nick and rupture on side wall
• Tire tread depth (Refer to “Tire Inspection” in Section
0B (Page 0B-18).)
• Tread separation
• Abnormal, uneven wear on tread
• Surface damage on bead
• Localized tread wear due to skidding (Flat spot)
• Abnormal condition of inner liner
Air Valve
Inspect the air valve for peeling and damage. If any
defect is found, replace the air valve with a new one.
Refer to “Air Valve Removal and Installation” (Page 2D-
16).
Inspect the valve core seal (1) for wear and damage. If
any defect is found, replace the valve core with a new
one. Refer to “Air Valve Removal and Installation”
(Page 2D-16).
Air Valve Removal and Installation
B947H12406013
Removal
1) Remove the wheel assembly. Refer to “Front Wheel
Assembly Removal and Installation” (Page 2D-4)
and “Rear Wheel Assembly Removal and
Installation” (Page 2D-11).
2) Remove the tire. Refer to “Tire Removal and
Installation” (Page 2D-14).
Front Rear
Solo
riding
250 kPa
(2.50 kgf/cm
2
, 36 psi)
290 kPa
(2.90 kgf/cm
2
, 42 psi)
Dual
riding
250 kPa
(2.50 kgf/cm
2
, 36 psi)
290 kPa
(2.90 kgf/cm
2
, 42 psi)
I649G1240041-02
1. Seal
I649G1240042-02
I649G1240043-02
I649G1240044-02
1
I649G1240045-02
