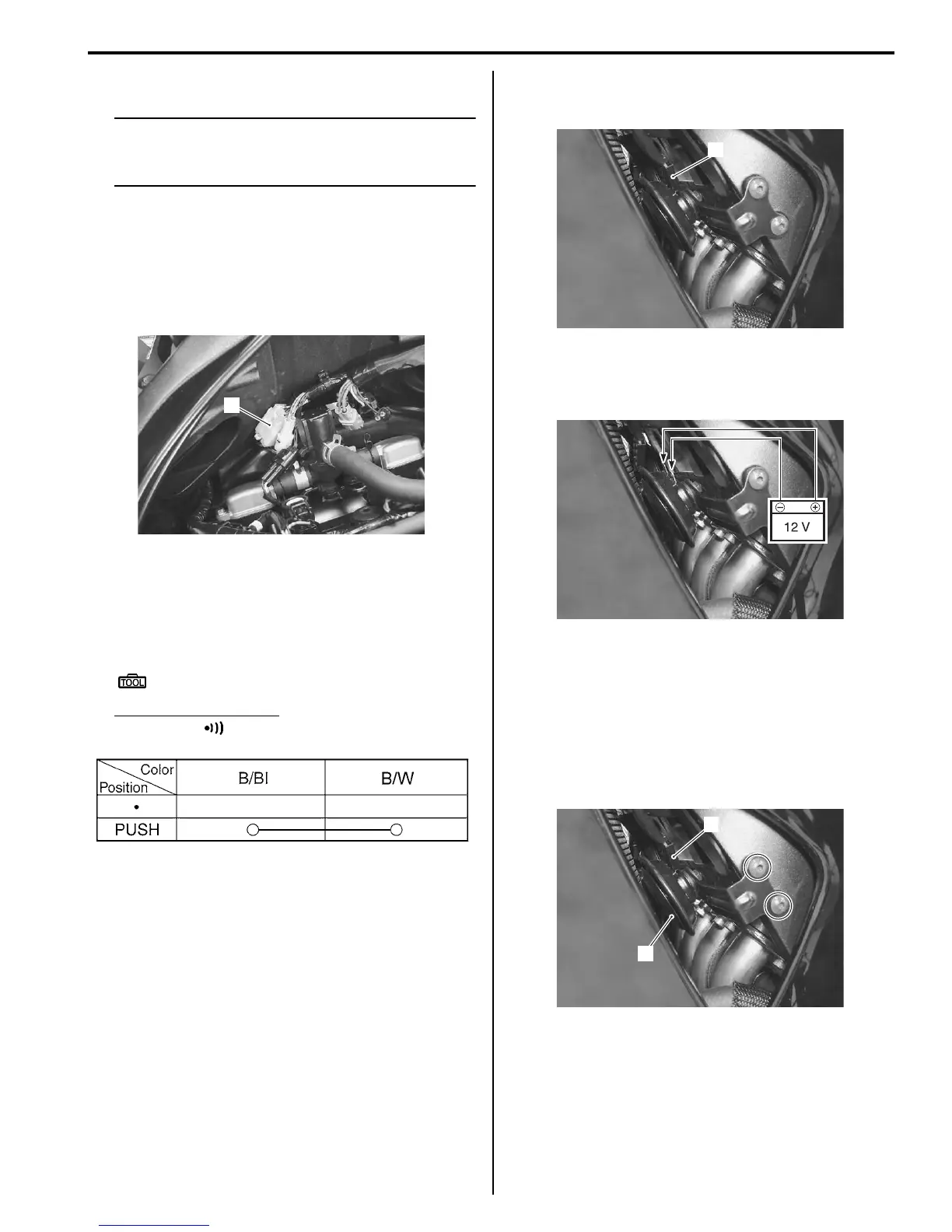

Suzuki GSX-R1000 User Manual

Combination Meter / Fuel Meter / Horn: 9C-8
Horn Inspection
B947H19306017
NOTE
If the horn sound condition is normal, it is not
necessary to inspect the horn button
continuity.
Horn Button Inspection
1) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation” in Section 1D
(Page 1D-7).
2) Disconnect the left handlebar switch lead wire
coupler (1).
3) Inspect the horn button for continuity with a tester.
If any abnormality is found, replace the left
handlebar switch assembly with a new one.
Refer to “Handlebar Removal and Installation” in
Section 6B (Page 6B-2).
Special tool
: 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity ( )
Horn Inspection
1) Disconnect the horn coupler (1).
2) Connect a 12 V battery to the horn terminals. If the
sound is not heard from the horn, replace the horn
with a new one.
3) Connect the horn coupler.
Horn Removal and Installation
B947H19306018
Removal
1) Disconnect the horn coupler (1).
2) Remove the horn (2) by removing the mounting
bolts.
Installation
Install the horn in the reverse order of removal.
1
I947H1930020-01
I718H1930028-03
1
I947H1930022-01
I947H1930023-01
1
2
I947H1930024-01
