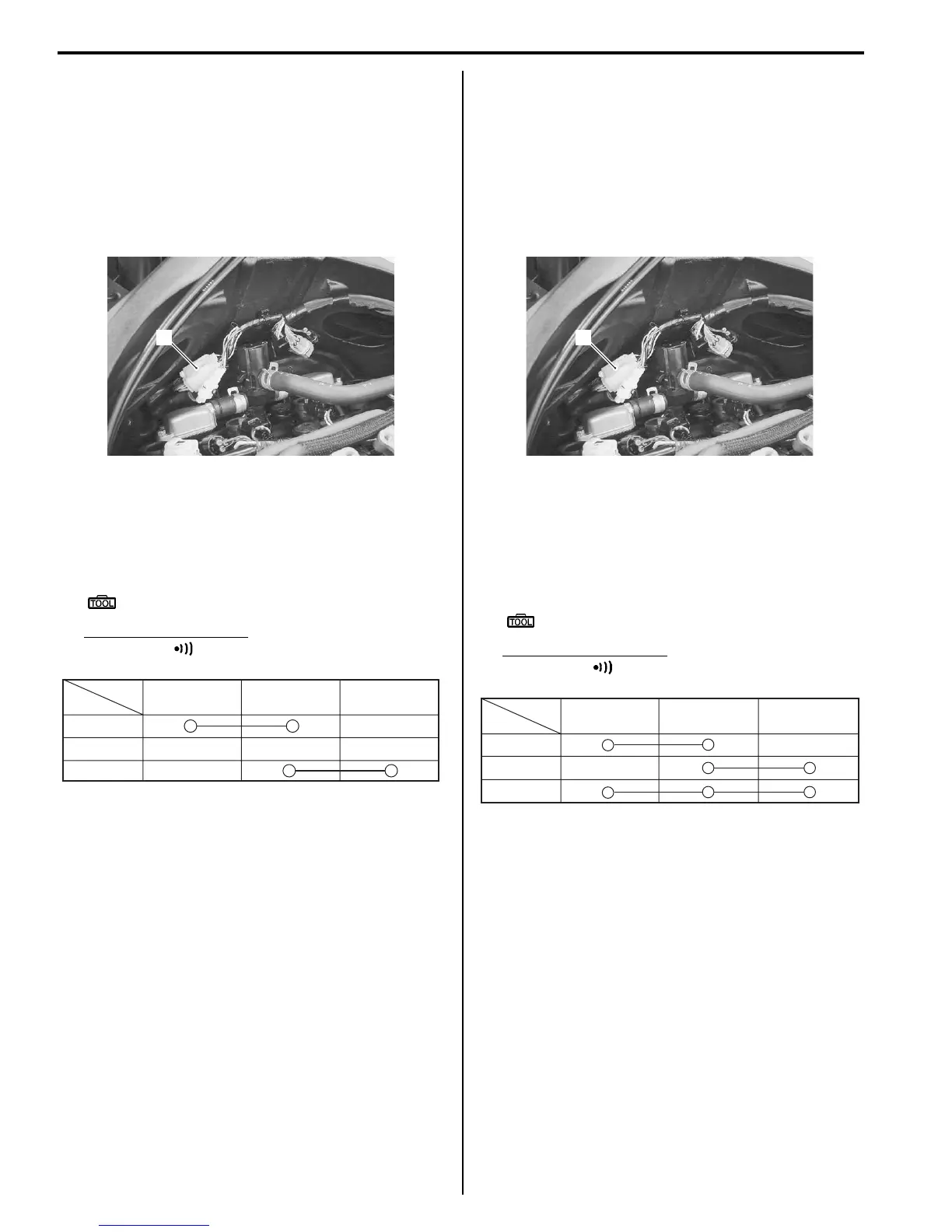

9B-12 Lighting Systems:
Turn Signal Switch Inspection
B947H19206022
Inspect the turn signal switch in the following
procedures:
1) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation” in Section 1D
(Page 1D-7).
2) Disconnect the left handlebar switch coupler (1).
(Yellow)
3) Inspect the turn signal switch for continuity with the
tester. If any abnormality is found, replace the left
handlebar switch assembly with a new one.
Refer to “Handlebar Removal and Installation” in
Section 6B (Page 6B-2).
Special tool
: 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity ( )
4) After finishing the turn signal switch inspection,
reinstall the removed parts.
Dimmer / Passing Light Switch Inspection
B947H19206023
Inspect the dimmer/passing light switch in the following
procedures:
1) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation” in Section 1D
(Page 1D-7).
2) Disconnect the left handlebar switch coupler (1).
(Yellow)
3) Inspect the dimmer/passing light switch for continuity
with the tester.
If any abnormality is found, replace the left
handlebar switch assembly with a new one.
Refer to “Handlebar Removal and Installation” in
Section 6B (Page 6B-2).
Special tool
: 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity ( )
4) After finishing the passing light switch inspection,
reinstall the removed parts.
1
I947H1920040-02
L
PUSH
R
B Lbl Lg
Color
Position
I947H1920041-01
1
I947H1920042-02
Position
Color
YOW
HI
LO
PASS
I947H1920043-01
