1E-6 Engine Lubrication System:
10) Check the engine oil level. Refer to “Engine Oil and
Filter Replacement” in Section 0B (Page 0B-10).
11) Install the left side cowling. Refer to “Exterior Parts
Removal and Installation” in Section 9D (Page 9D-
6).
Repair Instructions
Engine Oil and Filter Replacement
B947H11506001
Refer to “Engine Oil and Filter Replacement” in Section
0B (Page 0B-10).
Engine Oil Level Inspection
B947H11506002
Refer to “Engine Oil and Filter Replacement” in Section
0B (Page 0B-10).

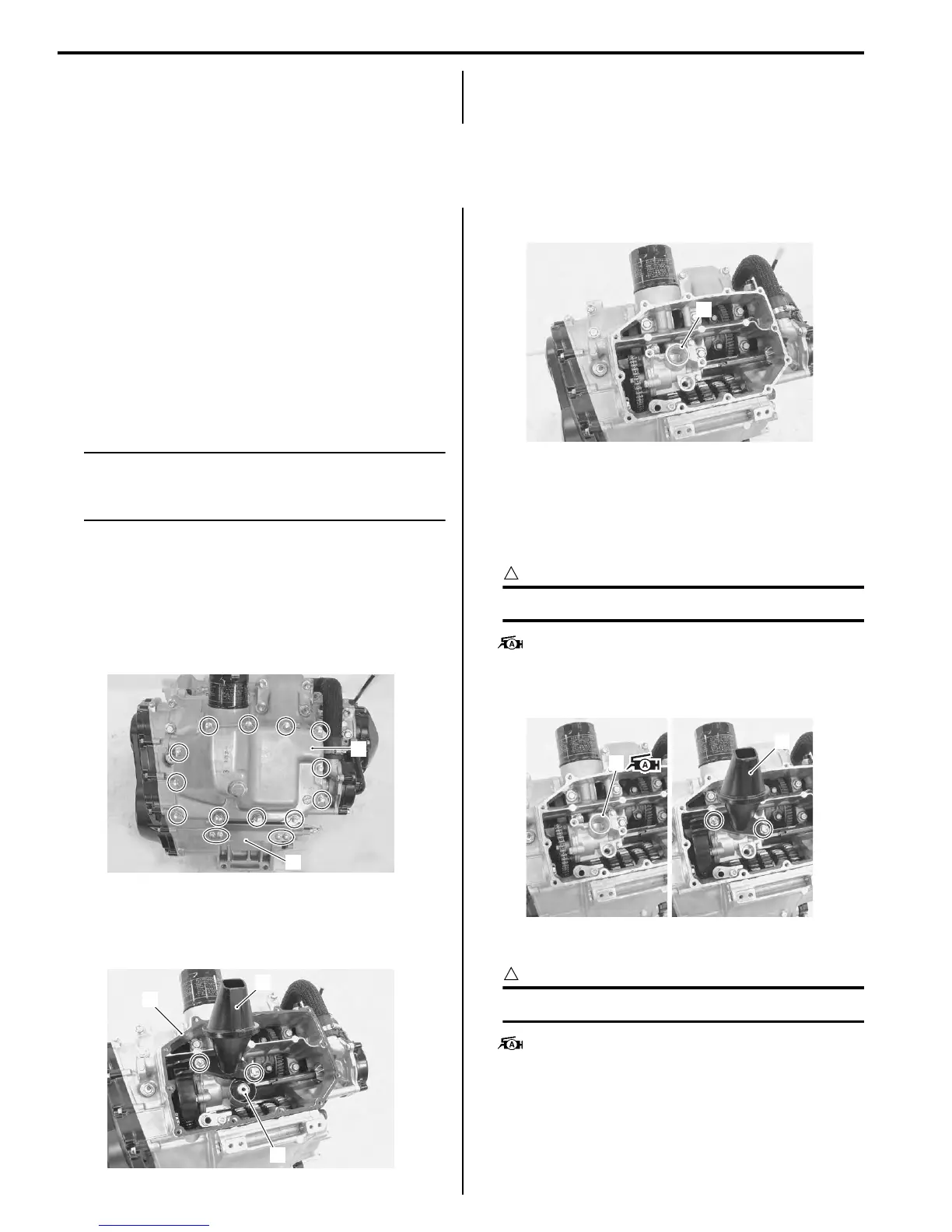

Oil Pan / Oil Pressure Regulator / Oil Strainer
Removal and Installation
B947H11506003
NOTE
The oil pan/oil strainer/oil pressure regulator
cannot be serviced with the engine installed
in the frame.
Removal
1) Remove the engine assembly from the frame. Refer
to “Engine Assembly Removal” in Section 1D
(Page 1D-20).
2) Remove the plate (1).
3) Remove the oil pan (2).
4) Remove the gasket (3).
5) Remove the oil pressure regulator (4) and oil strainer
(5).
6) Remove the O-ring (6).
Installation
Installation is in the reverse order of removal. Pay
attention to the following points:
• Apply grease to new O-ring (1).
CAUTION
!
Use a new O-ring to prevent oil leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE “A” or equivalent)
• Install the oil strainer (2).
• Apply grease to new O-ring (3).
CAUTION
!
Use a new O-ring to prevent oil leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE “A” or equivalent)
1
2
I947H1150006-01
3
5
4
I947H1150007-01
6
I947H1150008-01
1
2
I947H1150009-01
