Wheels and Tires: 2D-14

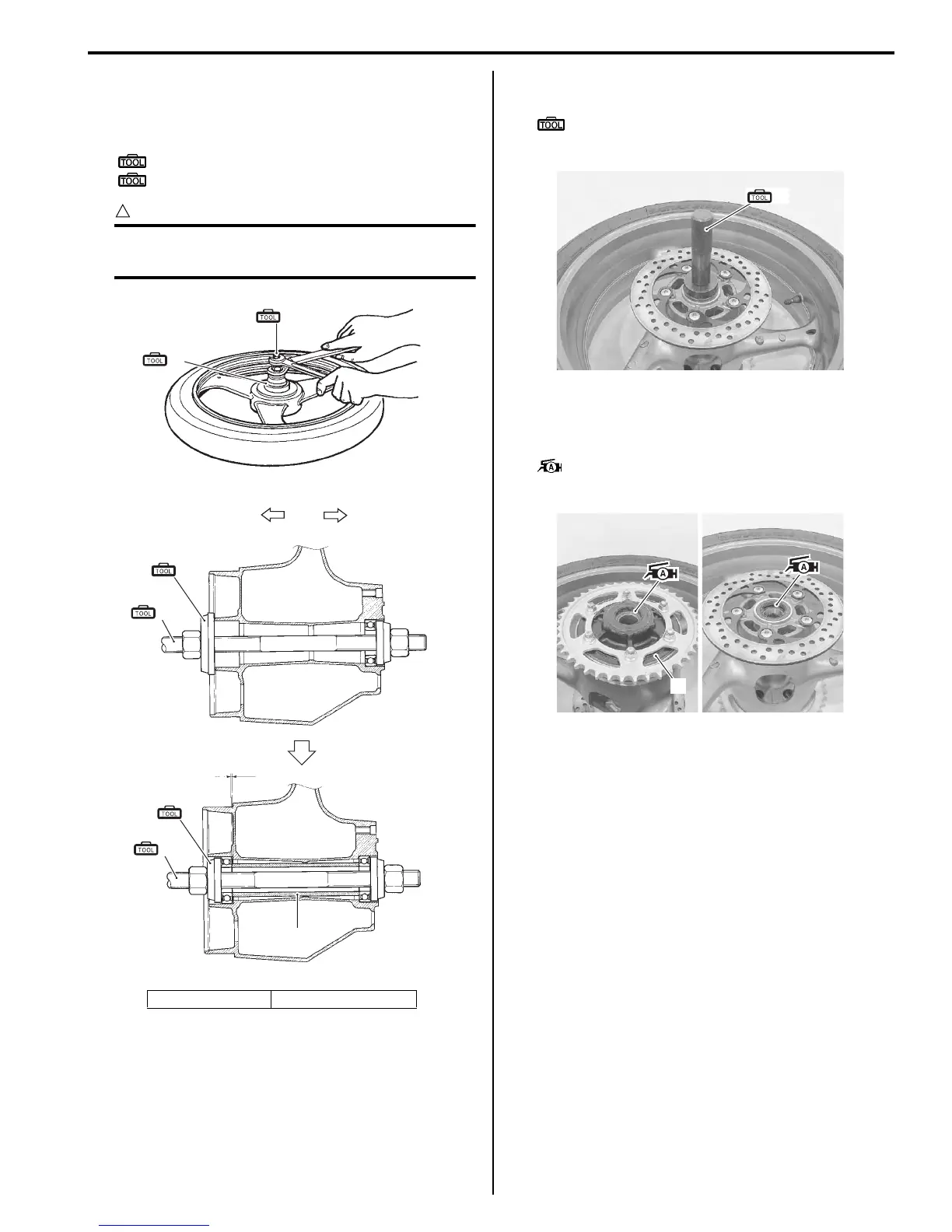

2) First install the right wheel bearing, then install the
spacer (1) and left wheel bearing with the special
tools.
Special tool
(A): 09941–34513 (Bearing installer)
(B): 09924–84510 (Bearing installer set)
CAUTION
!
The sealed cover of the bearing must face
outside.
3) Install new dust seal with the special tool.
Special tool
(C): 09913–70210 (Bearing installing set (10
– 75 Φ))
4) Install the rear sprocket mounting drum assembly
(2).
5) Apply grease to the lip of dust seals.
: Grease 99000–25010 (SUZUKI SUPER
GREASE “A” or equivalent)
6) Install the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation”
(Page 2D-11).
Tire Removal and Installation
B947H12406011
Removal
The most critical factor of a tubeless tire is the seal
between the wheel rim and the tire bead. For this
reason, it is recommended to use a tire changer that can
satisfy this sealing requirement and can make the
operation efficient as well as functional.
1) Removal the wheel assembly. Refer to “Front Wheel
Assembly Removal and Installation” (Page 2D-4)
and “Rear Wheel Assembly Removal and
Installation” (Page 2D-11).
2) Remove the mounting drum from the rear wheel.
(For rear wheel)
Refer to “Rear Wheel Assembly Removal and
Installation” (Page 2D-11).
3) Remove the valve core.
1. Spacer “a”: Clearance
(B)
(A)
I649G1240030-02
LH RH
(A)
(B)
(A)
(B)
1
“a”
I947H1240032-01
(C)
I947H1240024-01
2
I947H1240025-03
