Suzuki GSX-R1000 User Manual

Lighting Systems: 9B-9

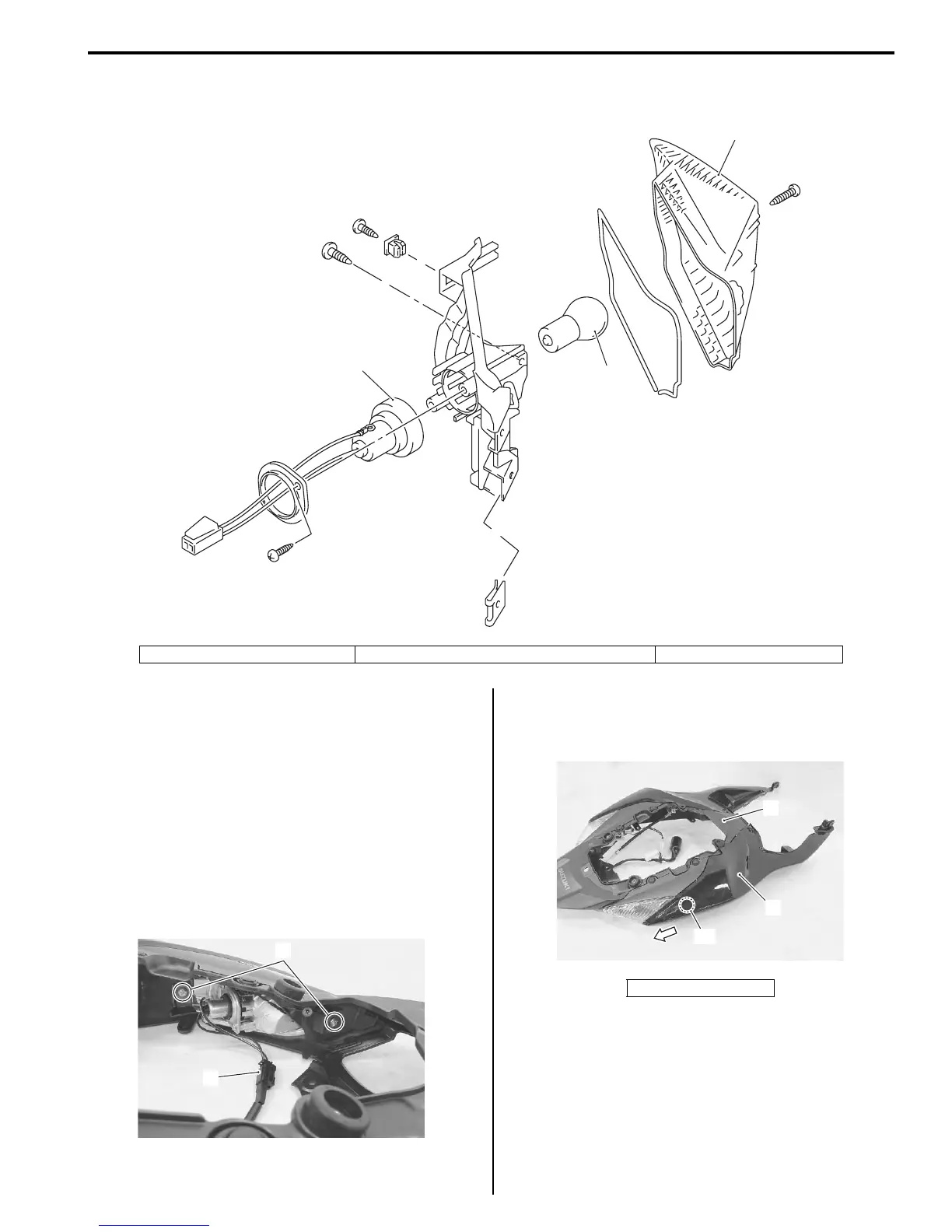

Rear Turn Signal Light Components
B947H19206014
Rear Turn Signal Light Removal and Installation
B947H19206015
Removal
1) Remove the frame cover assembly. Refer to
“Exterior Parts Removal and Installation” in Section
9D (Page 9D-6).
2) Remove the rear combination light. Refer to “Rear
Combination Light Removal and Installation”
(Page 9B-6).
3) Disconnect the lead wire coupler (1).
(LH: White, RH: Black)
4) Remove the screws (2).
5) Remove the side frame cover (3) from the center
frame cover (4). Refer to “Frame Cover
Construction” in Section 9D (Page 9D-3).
1
2
3
I947H1920030-01
1. Rear turn signal light lens 2. Rear turn signal light bulb (12 V 21 W) 3. Socket
1
2
I947H1920031-01
“A”: Bushing
3
4
“A”
I947H1920032-01
