Engine General Information and Diagnosis: 1A-55
DTC “C21” (P0110-H/L): IAT Sensor Circuit Malfunction
B947H11104015
Detected Condition and Possible Cause

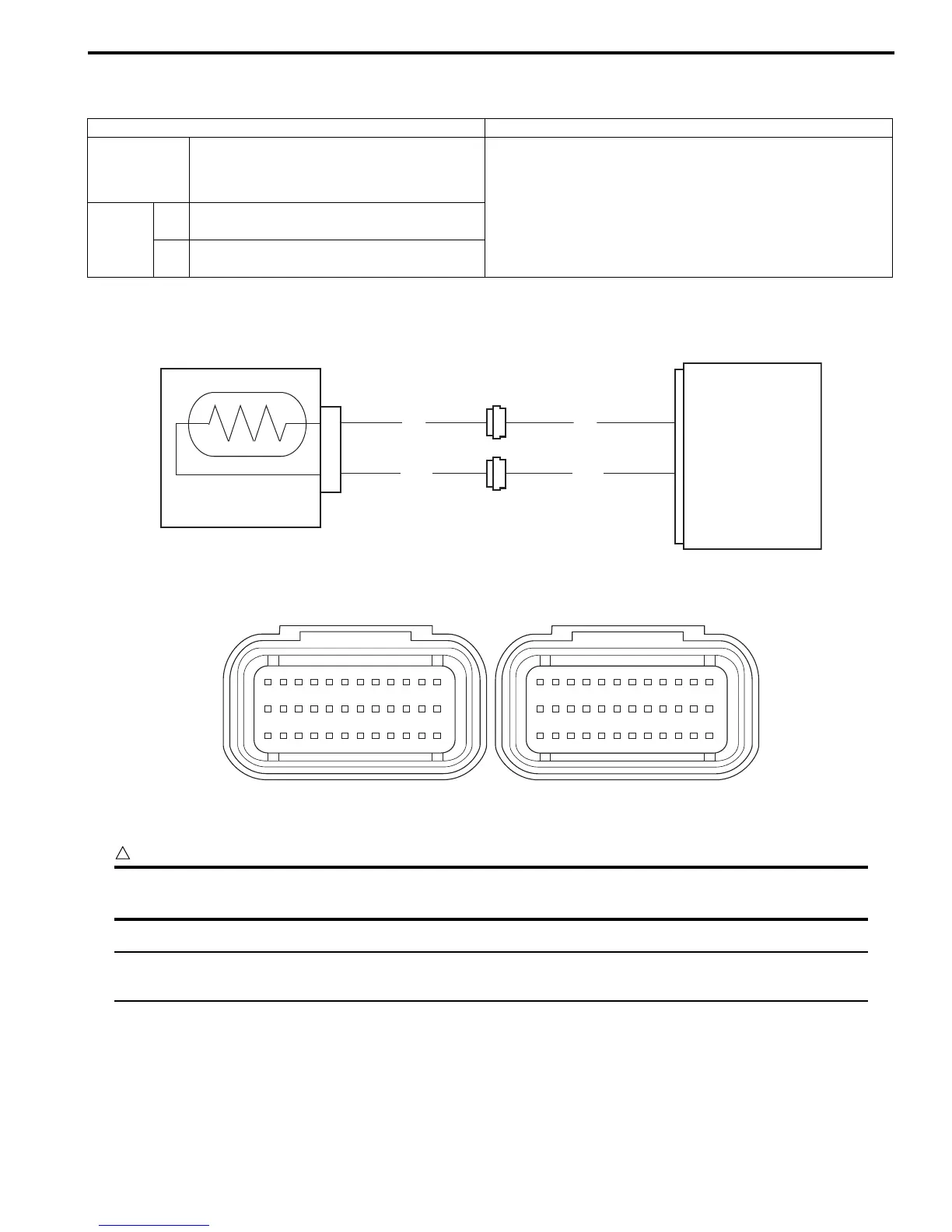

Wiring Diagram
ECM coupler (Harness side)
Troubleshooting
CAUTION
!
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with a
needle pointed tester probe to prevent terminal damage.
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to “Use of SDS Diagnosis Reset
Procedures” (Page 1A-14).
Detected Condition Possible Cause
C21
Output voltage is not with in the following
range.
0.15 V ≤ Sensor voltage < 4.85 V
• IAT sensor circuit open or short.
• IAT sensor malfunction.
• ECM malfunction.
P0110
H
Sensor voltage is higher than specified
value.
• IAT sensor circuit open or ground circuit open.
L
Sensor voltage is lower than specified
value.
• IAT sensor circuit shorted to ground.
ECM
B/Br
E2
IATS
Dg
B/Br
Dg
IAT sensor
33
35
I947H1110124-01
123456789101112
13 14 15 16 17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32 33 34 35 36
37 38 39 40 41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56 57 58 59 60
61 62 63 64 65 66 67 68 69 70 71 72
I837H1110007-02
