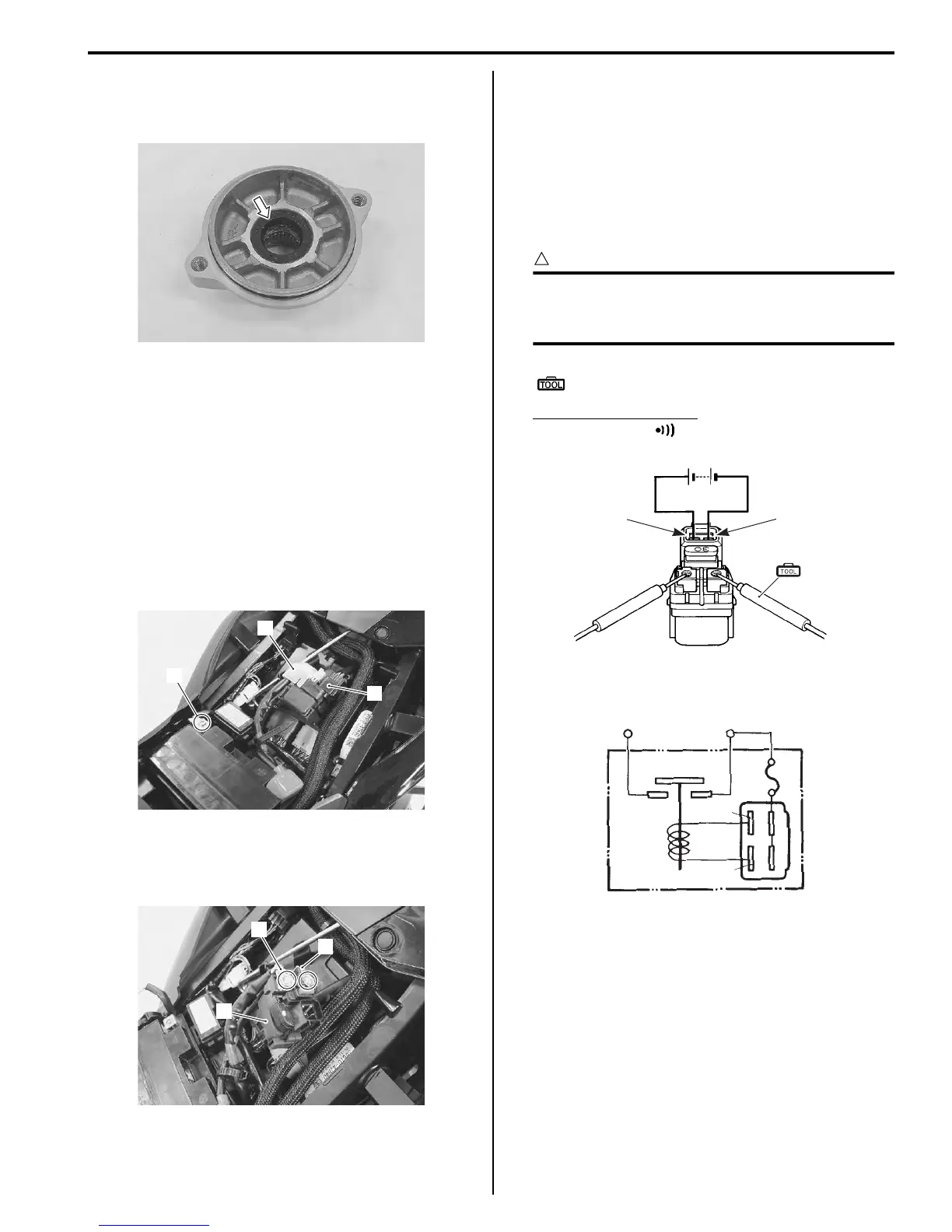

Starting System: 1I-6
Oil Seal
Check the seal lip for damage.
If any damage is found, replace the housing end.
Starter Relay Removal and Installation
B947H11906005
Removal
1) Turn the ignition switch OFF.
2) Remove the front seat. Refer to “Exterior Parts
Removal and Installation” in Section 9D (Page 9D-
6).
3) Disconnect the battery (–) lead wire (1) from the
battery.
4) Remove the starter relay cover (2) and disconnect
the starter relay coupler (3).
5) Disconnect the starter motor lead wire (4) and
battery (+) lead wire (5).
6) Remove the starter relay (6).
Installation
Install the starter relay in the reverse order of removal.
Starter Relay Inspection
B947H11906006
Inspect the starter relay in the following procedures:
1) Remove the starter relay. Refer to “Starter Relay
Removal and Installation” (Page 1I-6).
2) Apply 12 V to “A” and “B” terminals and check for
continuity between the positive and negative
terminals using the multi-circuit tester. If the starter
relay clicks and continuity is found, the relay is ok.
CAUTION
!
Do not apply battery voltage to the starter
relay for five seconds and more, since the
relay coil may overheat and get damaged.
Special tool
(A): 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity test ( )
I947H1190010-01
2
3
1
I947H1190011-03
5
6
4
I947H1190027-01
“A” “B”
(A)
I649G1190021-04
“A”
“B”
To batteryTo starter motor
(+)
(–)
I823H1190040-02
