Engine General Information and Diagnosis: 1A-3
Self-Diagnosis Function
B947H11101002
The self-diagnosis function is incorporated in the ECM. The function has two modes, “User mode” and “Dealer mode”.
The user can only be notified by the LCD (DISPLAY) panel and LED (FI indicator light). To check the function of the
individual FI system devices, the dealer mode is provided. In this check, the special tool is necessary to read the code
of the malfunction items.
User Mode
*1
When one of the signals is not received by ECM, the fail-safe circuit works and injection is not stopped. In this case,
“FI” and Odd / Trip / Clock / Panel light brightness / Lap time counter are indicated in the LCD panel and motorcycle
can run.
*2
The injection signal is stopped, when the camshaft position sensor signal, crankshaft position sensor signal, tip-over
sensor signal, #1, #2, #3 and #4 ignition signals, #1, #2, #3 and #4 injector signals, fuel pump relay signal or ignition
switch signal is not sent to ECM. In this case, “FI” is indicated in the LCD panel. Motorcycle does not run.
“CHEC”:
The LCD panel indicates “CHEC” when no communication signal from the ECM is received for 5 seconds.
For Example:
The ignition switch is turned ON, and the engine stop switch is turned OFF. In this case, the speedometer does not
receive any signal from ECM, and the panel indicates “CHEC”. If CHEC is indicated, the LCD does not indicate the
trouble code. It is necessary to check the wiring harness between ECM and speedometer couplers.The possible
cause of this indication is as follows:
Engine stop switch is in OFF position. Side-stand/ignition inter-lock system is not working. Ignition fuse is burnt.
“Sd”:
The LCD panel indicates “Sd” when the steering damper solenoid malfunction, battery abnormal voltage and speed
sensor malfunction occurred.

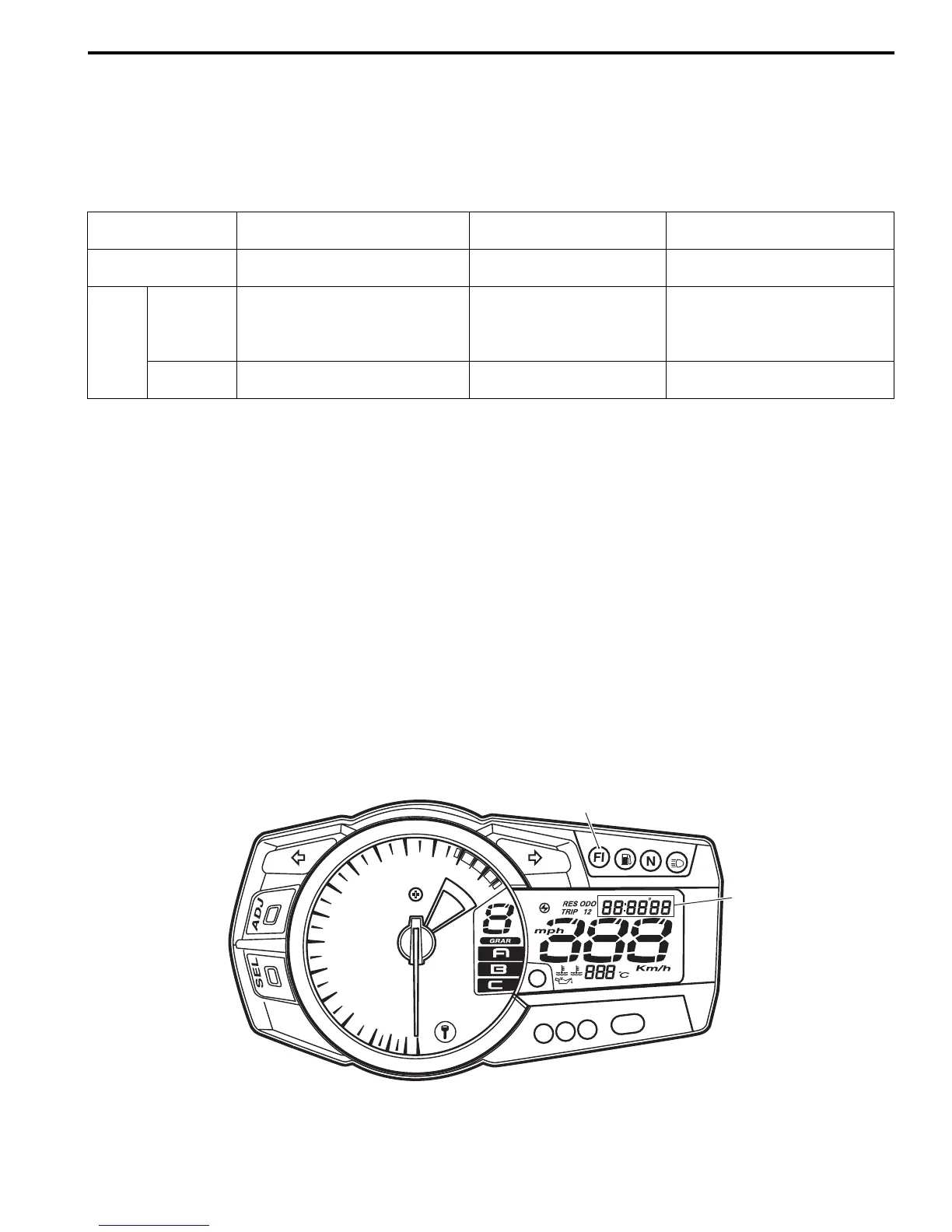

Malfunction
LCD (DISPLAY)
INDICATION “A”
FI INDICATOR LIGHT
INDICATION “B”
INDICATION MODE
“NO”
Odd / Trip / Clock / Panel light
brightness / Lap time counter
——
“YES”
Engine can
start
Odd / Trip / Clock / Panel light
brightness / Lap time counter
and “FI” letters
*1
FI indicator light turns ON.
Each 2 sec. Odd / Trip / Clock /
Panel light brightness / Lap time
counter and “FI” is indicated.
Engine can
not start
“FI” letters
*2
FI indicator light turns ON
and blinks.
“FI” is indicated continuously.
“B”
“A”
I947H1110001-01
