Charging System: 1J-11
Battery Recharging
CAUTION
!
Do not remove the caps on the battery top
while recharging.
NOTE
When the motorcycle is not used for a long
period, check the battery every 1 month to
prevent the battery discharge.
1) Remove the battery from the motorcycle. Refer to
“Battery Removal and Installation” (Page 1J-11).
2) Measure the battery voltage using the multi-circuit
tester.
If the voltage reading is less than the 12 V (DC),
recharge the battery with a battery charger.
Recharging time
1.2 A for 5 to 10 hours or 5 A for 1 hour
CAUTION
!
Be careful not to permit the charging current
to exceed 5 A at any time.
3) After recharging, wait at least 30 minutes and then
measure the battery voltage using the multi-circuit
tester.
If the battery voltage is less than 12.5 V, recharge
the battery again.
If the battery voltage is still less than 12.5 V after
recharging, replace the battery with a new one.
4) Install the battery to the motorcycle. Refer to “Battery
Removal and Installation” (Page 1J-11).
Battery Removal and Installation
B947H11A06010
Removal
1) Remove the front seat. Refer to “Exterior Parts
Removal and Installation” in Section 9D (Page 9D-
6).
2) Disconnect the battery (–) lead wire (1).
3) Disconnect the battery (+) lead wire (2).
NOTE
Be sure to disconnect the battery (–) lead
wire (1) first, then disconnect the battery (+)
lead wire (2).
4) Remove the battery (3) from the motorcycle.

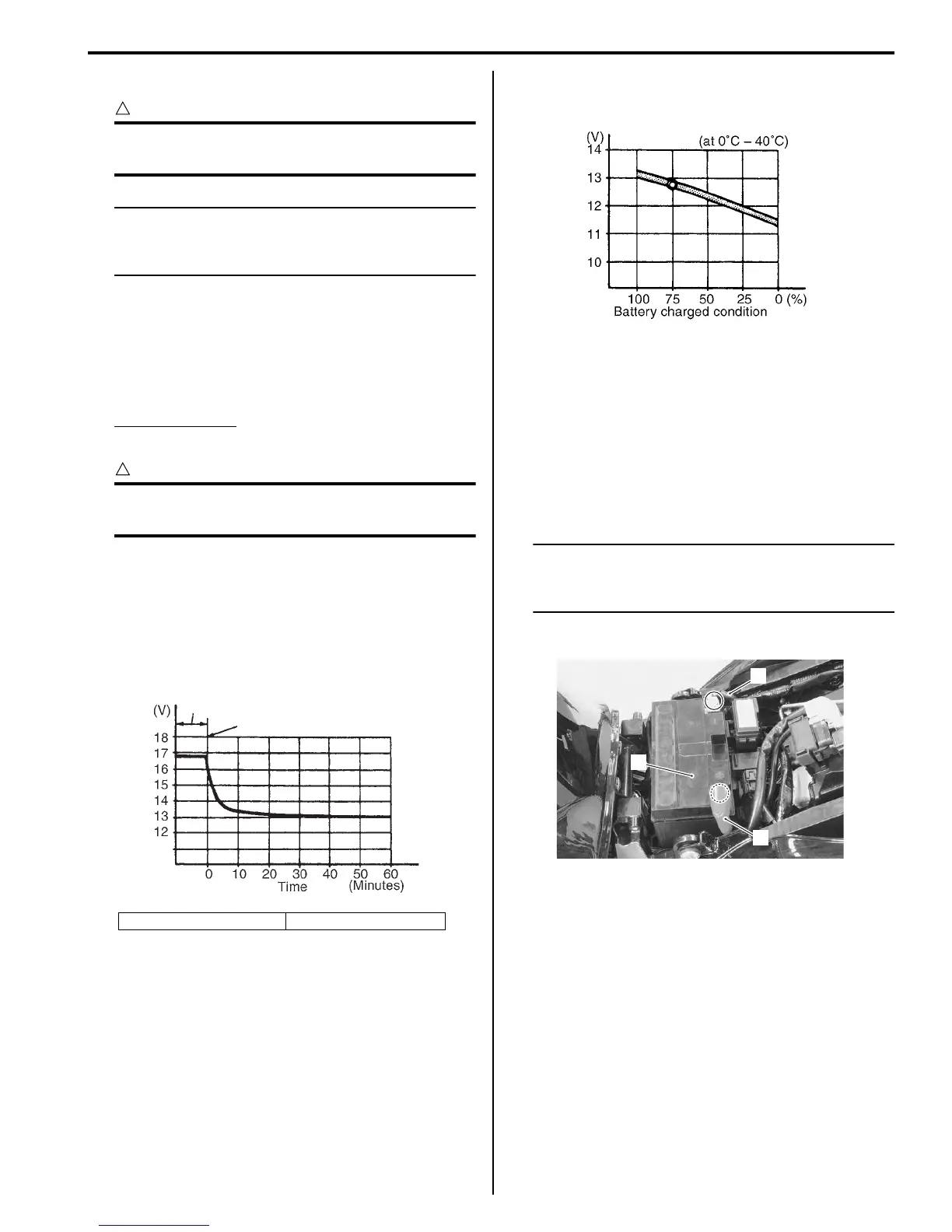

“A”: Charging period “B”: Stop charging
“A”
“B”
I649G11A0045-02
I705H11A0029-02
1
2
3
I947H11A0017-01
