Front Brakes: 4B-1

Brake

Front Brakes

Repair Instructions

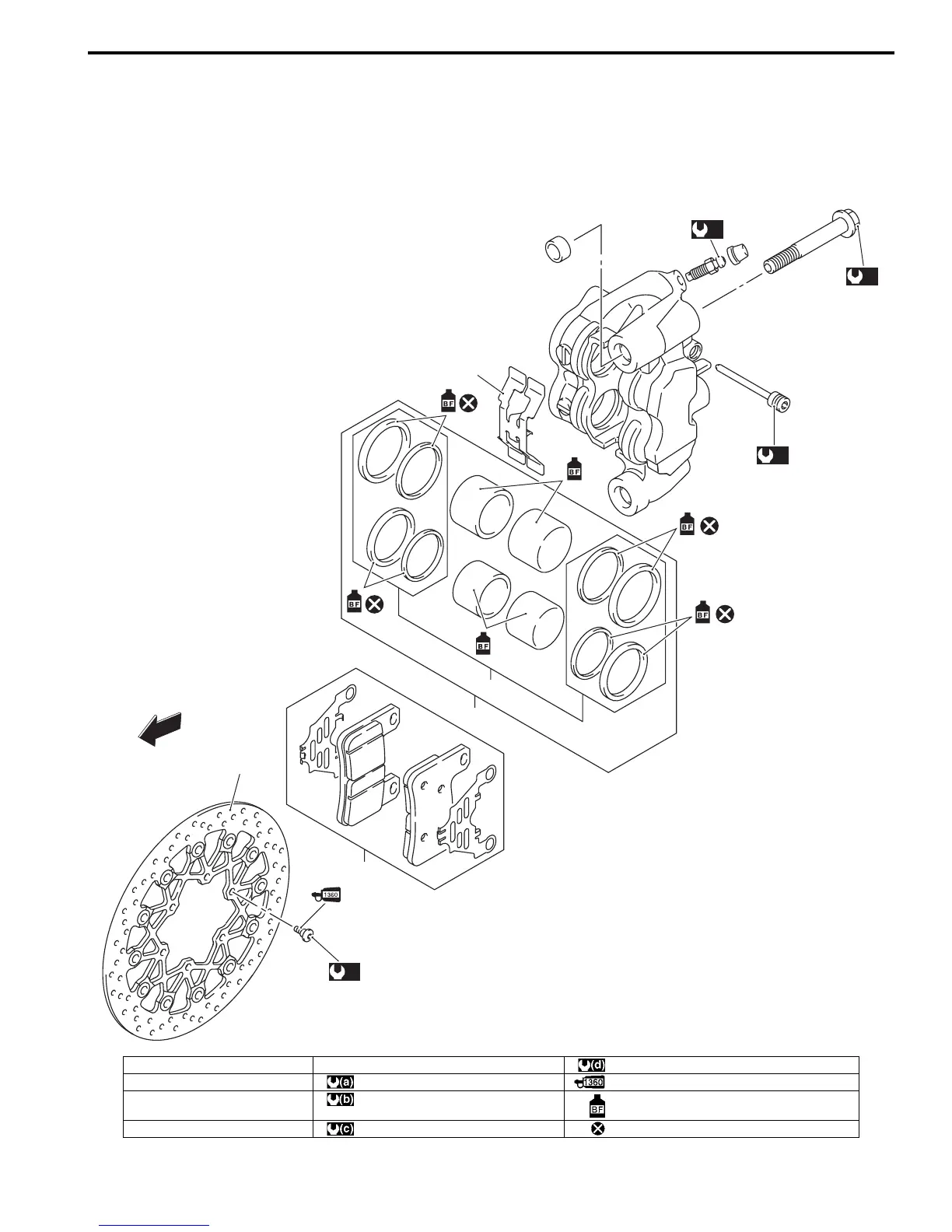

Front Brake Components

B947H14206001

FWD

(a)

(b)

(c)

(d)

I947H1420020-01

1. Seal set 5. Front brake disc : 18 N⋅m (1.8 kgf-m, 13.0 lbf-ft)

2. Piston and seal set : 7.5 N⋅m (0.75 kgf-m, 5.5 lbf-ft) : Apply thread lock to the thread part.

3. Brake pad spring : 15 N⋅m (1.5 kgf-m, 11.0 lbf-ft) : Apply brake fluid.

4. Brake pad set : 39 N⋅m (3.9 kgf-m, 28.0 lbf-ft) : Do not reuse.
