9E-2 Body Structure:

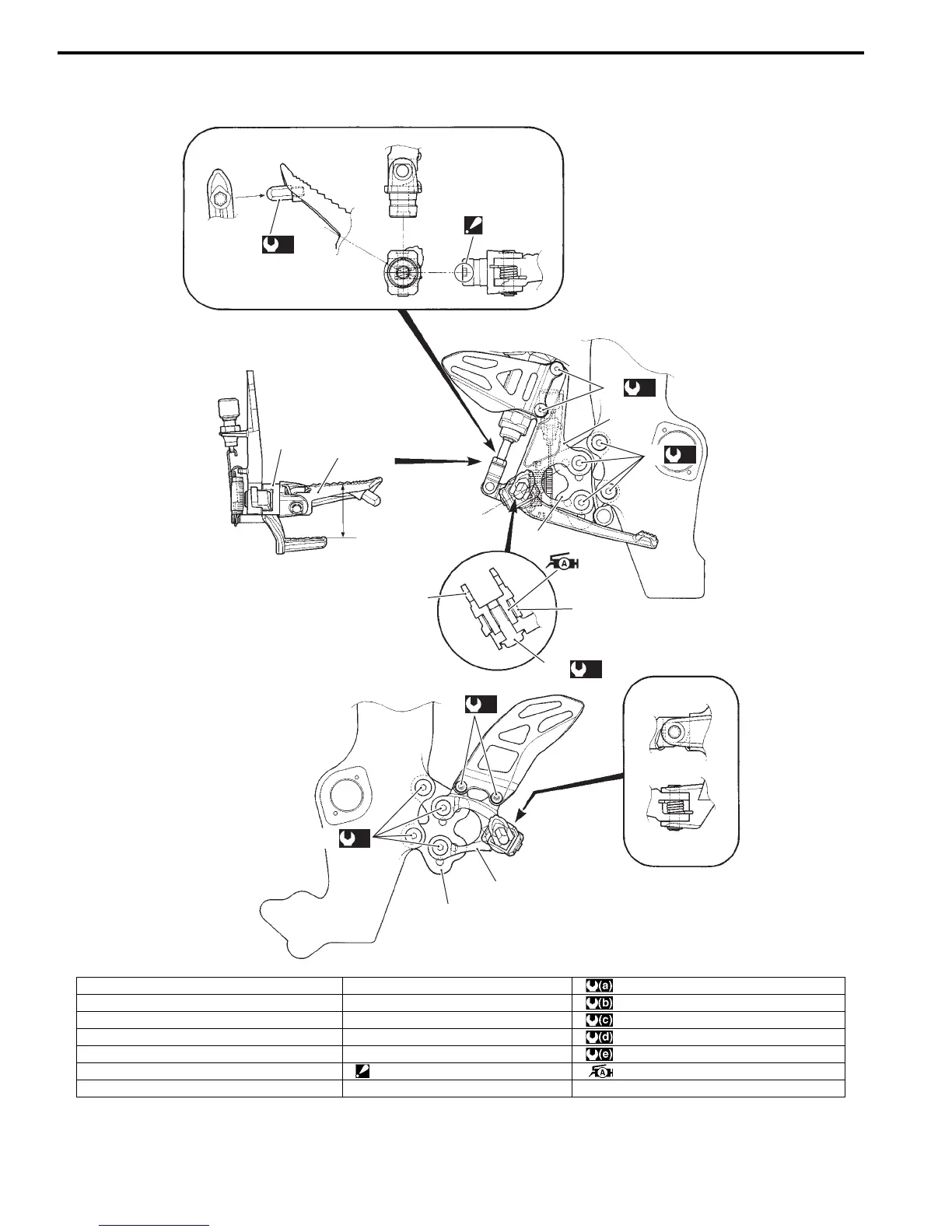

Front Footrest Bracket Construction
B947H19506002
(b)
2
(a)
1
(a)
1
5
6
7
8
8
9
10
4
“a”
“A”
(d)
11
(e)
12
(c)
3
I947H1950002-02
1. Footrest bracket bolt 8. Rear brake pedal : 23 N⋅m (2.3 kgf-m, 16.5 lbf-ft)
2. Rear brake master cylinder mounting bolt 9. Footrest bracket No. 2 (LH) : 10 N⋅m (1.0 kgf-m, 7.0 lbf-ft)
3. Footrest guard bolt 10. Footrest bracket No. 2 (RH) : 4.5 N⋅m (0.45 kgf-m, 3.0 lbf-ft)
4. Footrest bracket No. 1 (LH) 11. Bank sensor bolt : 18 N⋅m (1.8 kgf-m, 13.0 lbf-ft)
5. Footrest bracket No. 1 (RH) 12. Footrest holder bolt : 35 N⋅m (3.5 kgf-m, 25.5 lbf-ft)
6. Footrest “A”: Align the cutaway when installing. : Apply grease to the sliding surface.
7. Footrest holder “a”: 65 – 75 mm (2.6 – 3.0 in)
Manuals by Motomatrix / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk / www.motomatrix.co.uk

Suzuki GSX-R1000 Specifications

General

Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Fuel Tank Capacity	16.0 L (4.2 US gal)
Overall Length	2, 075 mm (81.7 in)
Wheelbase	1, 420 mm (55.9 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	825 mm (32.5 in)
Starter	Electric
Final Drive	Chain
Front Brakes Brand	Brembo
Displacement	999.8cc
Bore x Stroke	55.1mm
Fuel System	Fuel injection
Transmission	6-speed constant mesh
Front Tire	120/70ZR17M/C (58W)
Engine Type	4-stroke, liquid-cooled, DOHC, 4-cylinder
