1D-74 Engine Mechanical:
Balancer Shaft Journal Bearing Removal and
Installation
B947H11406038
Refer to “Engine Bottom Side Disassembly” (Page 1D-
49).
Refer to “Engine Bottom Side Assembly” (Page 1D-56).
Removal

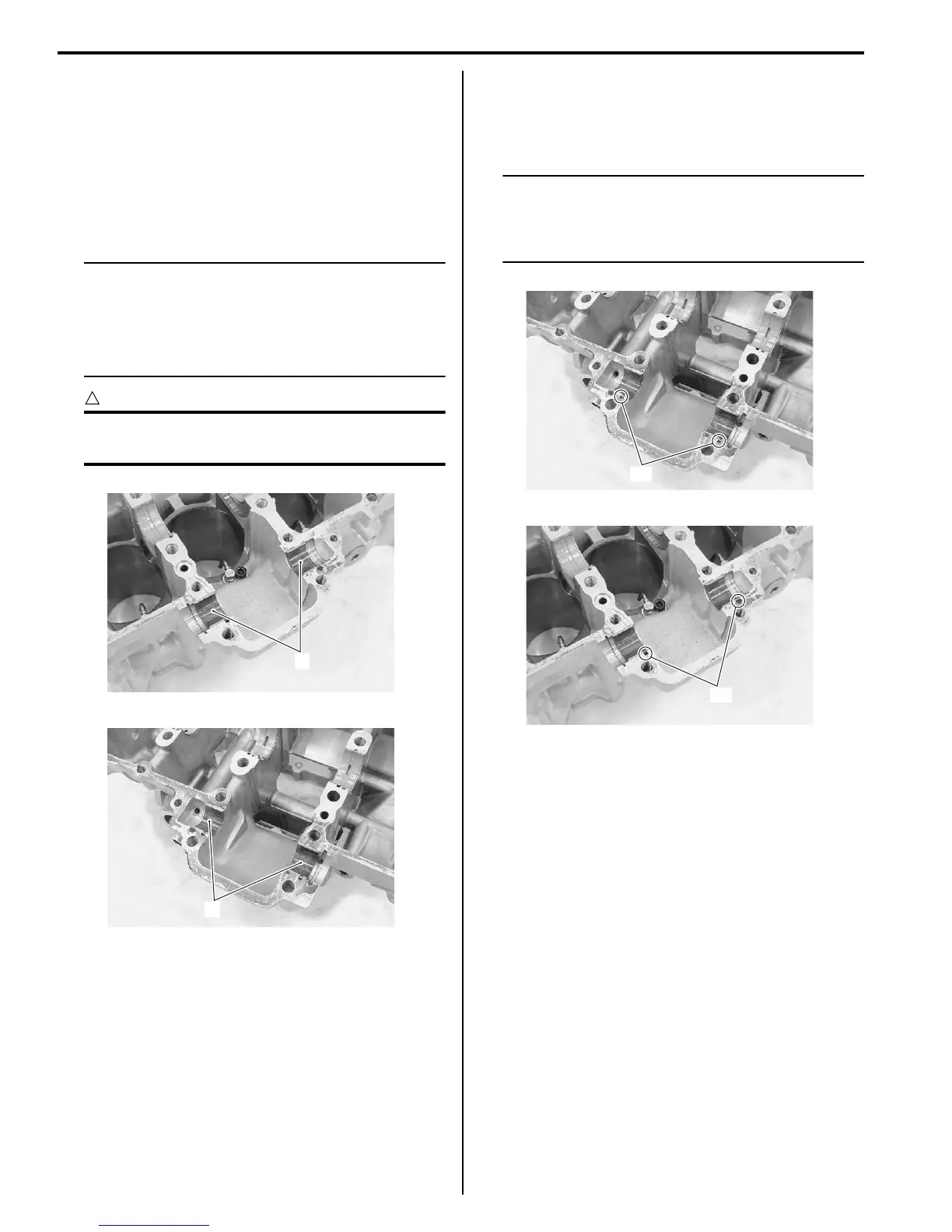

Remove the balancer shaft journal bearings (1).
NOTE
• Do not remove the bearings (1) unless
absolutely necessary.
• Make a note of where the bearings are
removed from so that they can be
reinstalled in their original positions.
CAUTION
!
When removing the bearings, be careful not
to scratch the bearings.
Installation
When installing the bearings to the crankcases, be sure
to install the tab “A” first, and then press in the other
opposite side of the bearing.
NOTE
Inspect and select the balancer shaft journal
bearing if necessary. Refer to “Balancer Shaft
Journal Bearing Inspection and Selection”
(Page 1D-75).
1
I947H1140224-02
1
I947H1140225-01
“A”
I947H1140226-01
“A”
I947H1140227-02
