CHAPTER 2 NEW FUNCTIONS
2-58

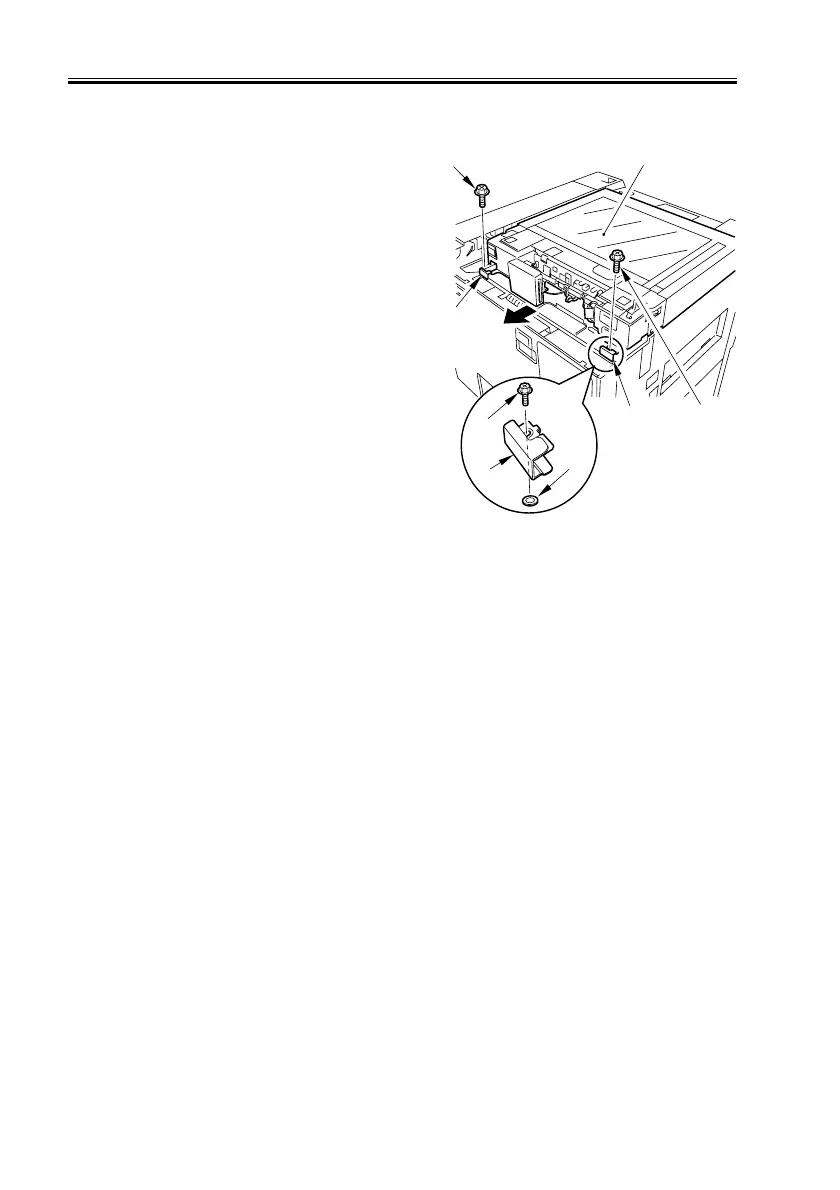

3.9.1 Removing the Reader Unit
1) Remove the ADF.
2) Remove the upper right cover (inside)
(See 10.4.1.j.).
3) Remove the rear upper cover (4 screws).
4) Remove the reader rear cover (See
10.4.1.h.).
5) Remove the screw [1], and detach the
reader fixing plate [2] and the washer
[3] (1 each).
6) Remove the reader unit [4] to the rear.
F02-309-01
[1]
[1]
[1]
[2]
[2]
[2]
[3]
[4]
