CHAPTER 4 INSTALLATION
4-25
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

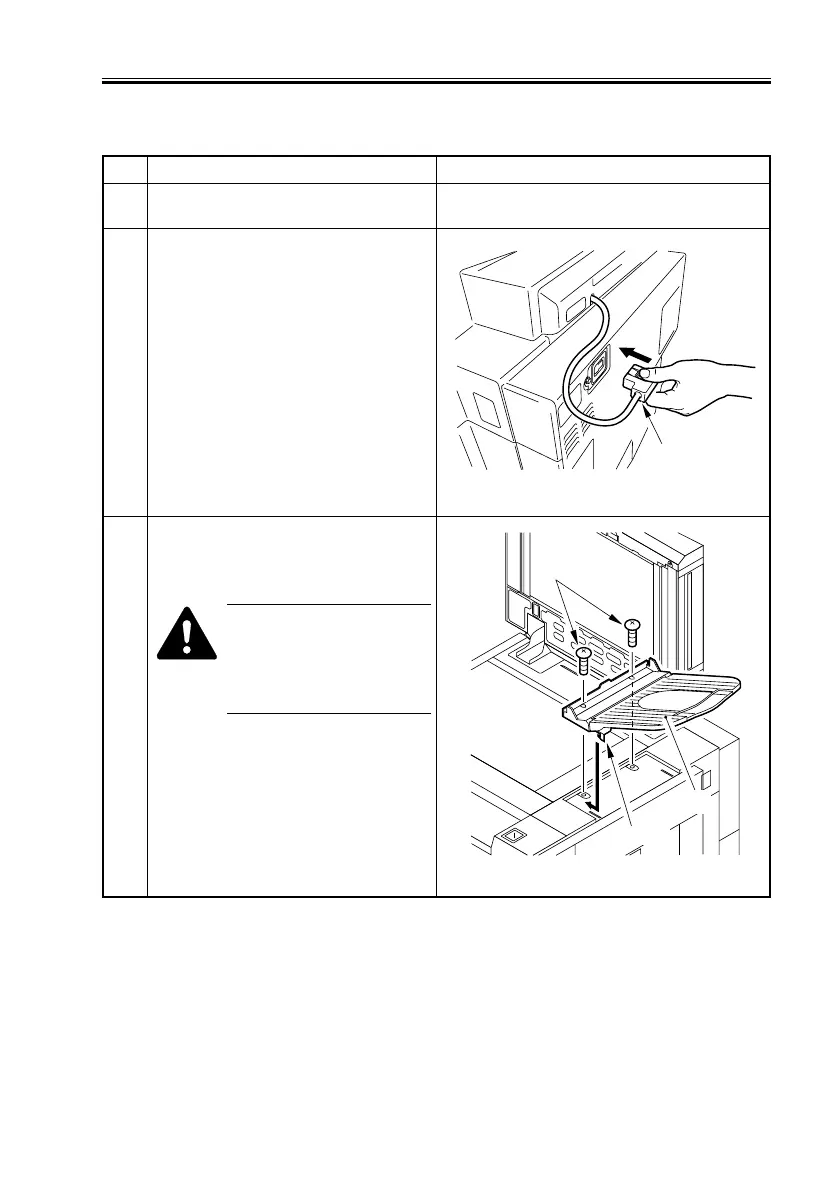

No. Work Checks/remarks
1 Remove the face plate of the connector for
the ADF from the copier.
2 Connect the ADF connector [1] to the
socket found at the back of the copier.
F04-209-01
[1]
[3]
[2]
[1]
F04-209-02
2.9 Installing the ADF (iR8500/iR8500P)
3 With the ADF open, mount the ADF
original tray [1] using 2 RS tightening
screws [2] (M4×8; white).
When mounting, fit the hook
[3] of the ADF tray into the
notch in the copier; then,
slide it to the left, and secure
it with screws.
To Next Page
