9 Fixing System
9.1 Outline
The following are major changes related to fixing:
• Controlling the fixing temperature to 198°C also in feeding
• Increase in the power of the fixing heater
For others, see T02-902-01 (comparison table).

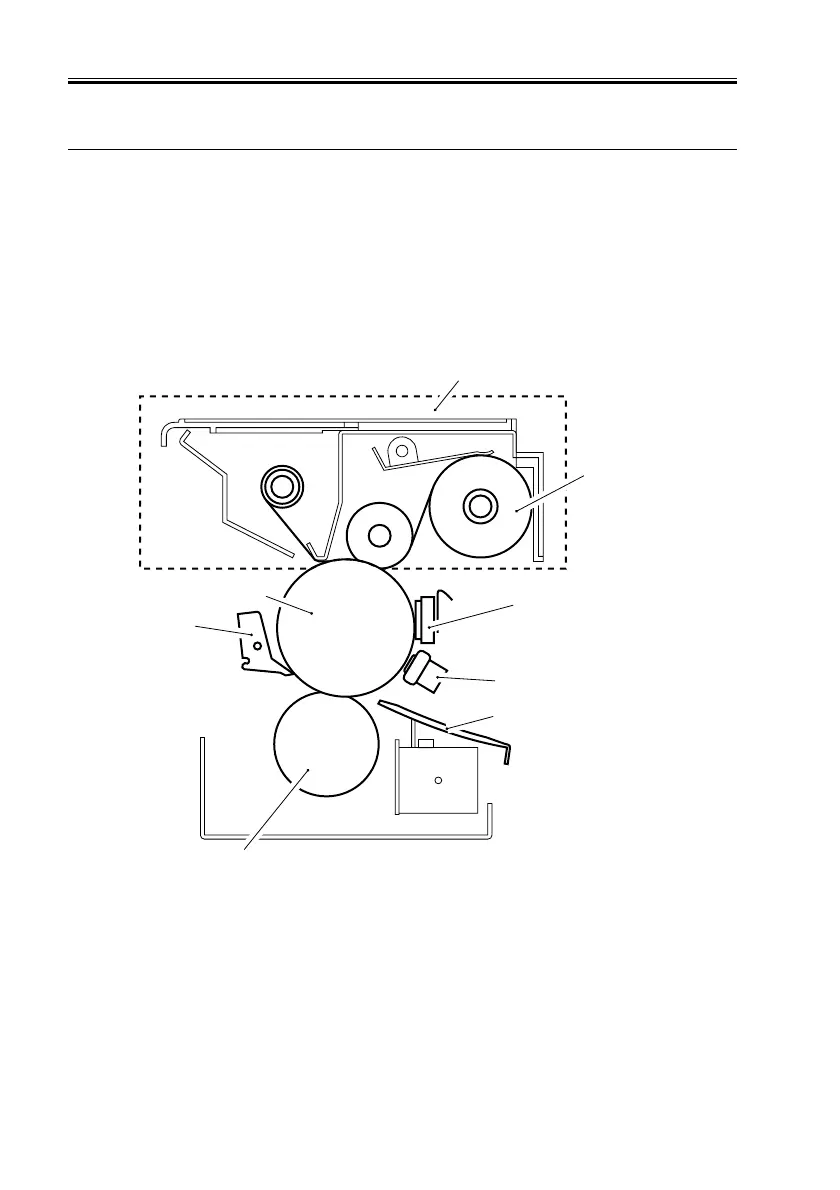

F02-901-01 and F02-901-02 show the major components of the fixing system.
F02-901-01
Cleaning web unit
Cleaning web
Main thermistor (TH1)
Sub thermistor (TH2)
Thermal switch (TP1)
Inlet guide
Upper fixing roller
Lower fixing roller
Separation claw
