Canon iR8500 - Orientation for the Feeding Roller of the Manual Feed Tray; Orientation of the Feeding Roller of the Side Paper Deck

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
CHAPTER 6 TROUBLESHOOTING
6-23

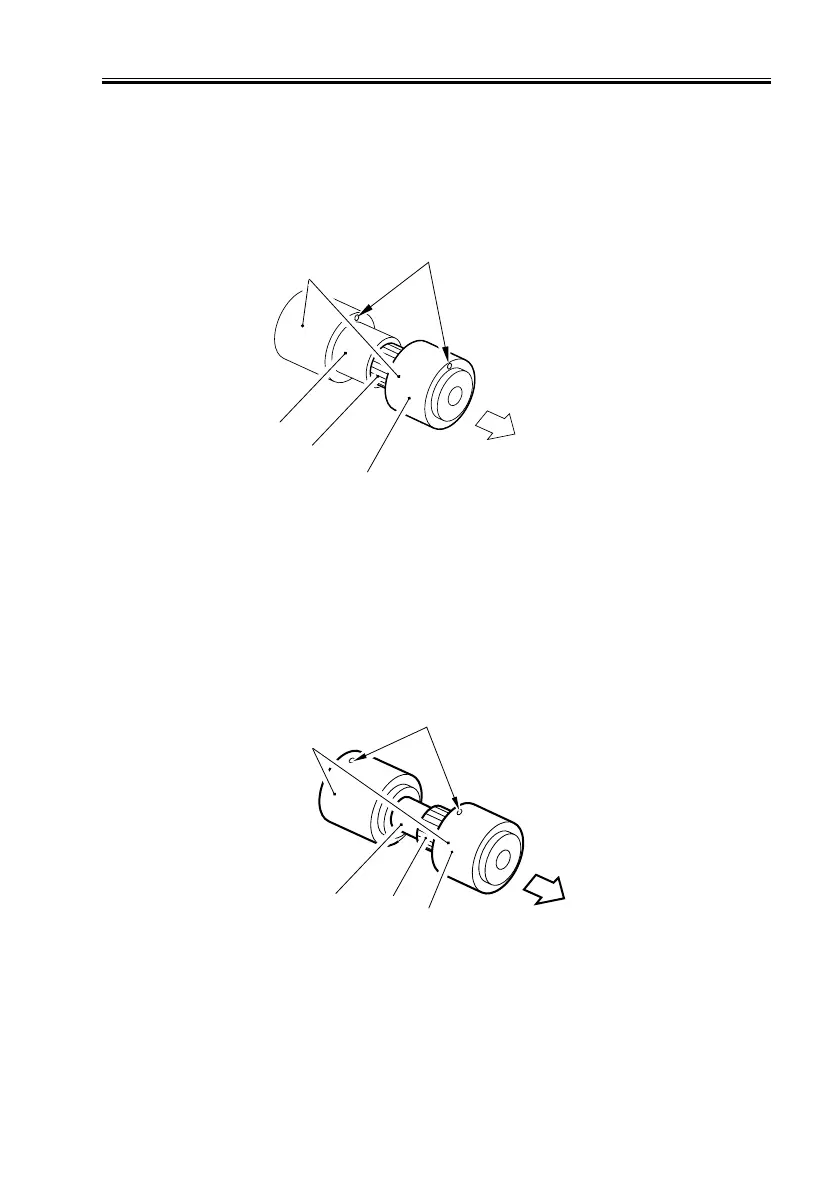

2.4.5 Orientation for the Feeding Roller of the Manual Feed Tray
When mounting the feeding roller assembly [1] to the manual feed tray pickup assembly,
be sure that the belt pulley [2] is toward the front of the machine. When mounting the feed-
ing roller [3] to the feeding roller shaft [4], be sure that the round marking [5] is toward the
front of the machine.
F06-204-07
2.4.6 Orientation of the Feeding Roller of the Side Paper Deck
When mounting the feeding roller assembly [1] to the side paper deck pickup assembly,
be sure that the belt pulley [2] is toward the front of the machine. When mounting the feed-
ing roller [3] to the feeding roller shaft [4], be sure that the round marking [5] is toward the
rear of the machine.
F06-204-08
(front of machine)
[3]
[4]
[2]
[1]
[5]
(front)
[3]
[4]
[2]
[1]
[5]
