CHAPTER 2 NEW FUNCTIONS
2-19
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
c. When Replacing the Scanning Lamp
1) Check to make sure that the Execute/Memory lamp in the control panel is OFF, and turn
off the main power switch.
2) Disconnect the power plug from the power outlet.
The machine remains powered as long a the power plug is connected. Be
sure to disconnect the power plug from the power outlet without fail.
3) Replace the scanning lamp.
4) Assemble the machine, and connector the power plug to the power outlet; then, turn on
the main power switch.
5) Execute the following in service mode in sequence:
1. COPIER>FUNCTION>CCD>CCD-ADJ
2. COPIER>FUNCTION>CCD>LUT-ADJ
6) Inplement the service mode described below to the service sheet which is to be kept in
the service log book case.
COPIER>FUNCTION>MISC-P>LBL-PRNT
7) Turn off and then on the main power switch.
2.9.2 Scanner Drive Assembly
a. Removing the Scanner Motor
1) Remove the right upper cover (See
10.4.1.i).
2) Remove the rear cover (See 10.4.1.e).
3) Remove the rear upper cover.

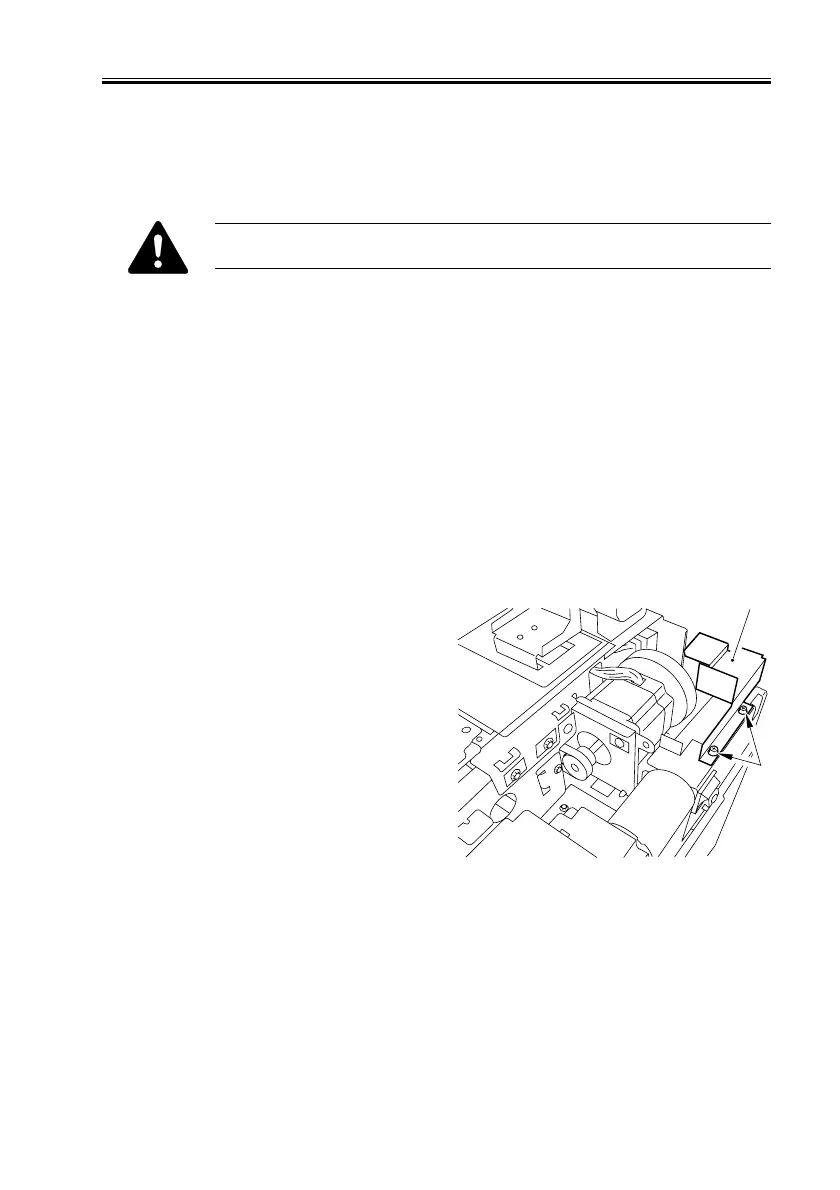

4) Remove the two screws [1], and detach
the rear cover support plate [2].
F02-209-10
[2]
[1]
To Next Page
