COPYRIGHT
©
2001CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
CHAPTER 6 TROUBLESHOOTING
6-203
7.5 Formatting the HDD
If you have replaced the HDD, you must format it and then download the system soft-
ware, RUI, and language.
7.5.1 Making Connections
The discussions that follow assume the use of a parallel cable:
1) Using a parallel cable, connect the PC to the parallel connector on the left side of the
controller.
• At this time, the PC must remain OFF.
• Connect the 25-pin connector of the bi-Centronics cable to the PC and the 36-pin con-
nector to the machine.
2) Turn on the PC, and start up the Service Support Tool.
3) Connect the machine’s power plug to the power outlet; while holding down ‘2’ and ‘8’
of the keypad at the same time, turn on the main power switch.
7.5.2 Starting Formatting

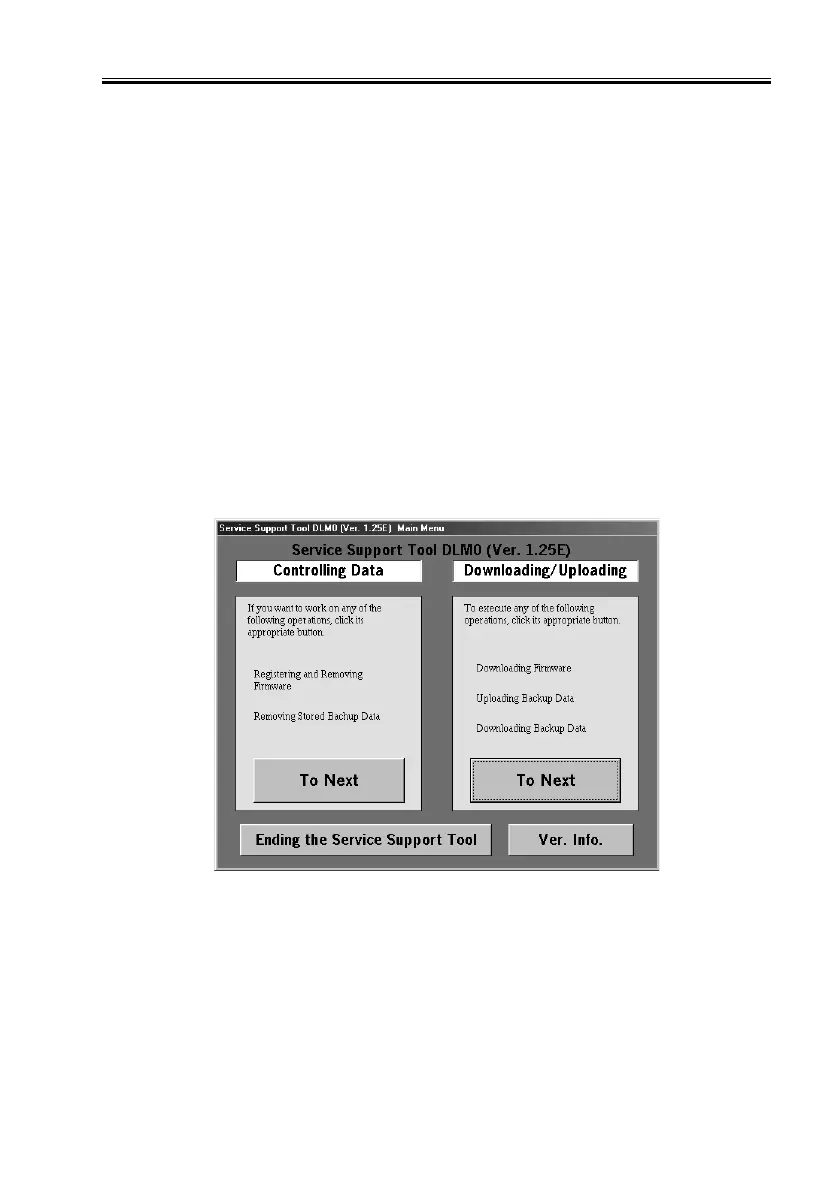

1) Under ‘Downloading/Uploading’, select ‘To Next’.
F06-705-01
