CHAPTER 2 NEW FUNCTIONS
2-139
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

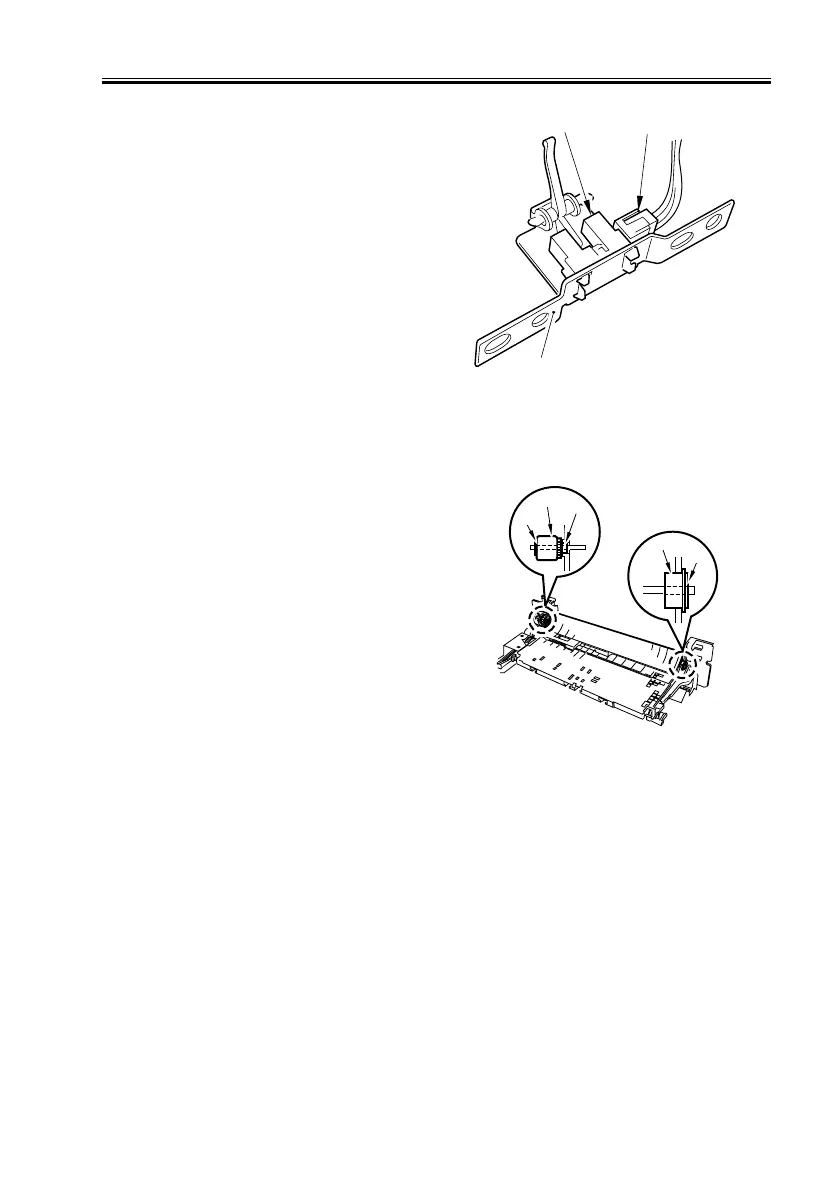

12) Disconnect the connector [1], and de-
tach the sensor unit [2].
13) Remove the sensor [3] from the sensor
unit [2].
F02-805-11
8.5.2 Vertical Path Roller Assembly
a. Removing the Vertical Path Roller 1/3/4
1) Remove the deck right/cassette pickup
assembly.
2) Remove the E-ring [1] and the bearing
[2] from the front, and remove the grip
ring [3], clutch [4], and bearing [5]
from the rear.
F02-805-12
[1]
[2]
[3]
To Next Page
