2.4 Pickup/Feeding System
2.4.1 Orientation of the Deck/Cassette Pickup Roller
Mount the parts by reversing the steps used to remove them with the following in mind:
• The front and rear pickup rollers are not interchangeable.
• The collar of the front pickup roller is gold-colored.
When mounting the pickup roller [1] to the pickup assembly, be sure that the round mark-
ing [2] on the side of the roller and the round marking [3] on the collar (gold-colored) are
toward the front of the machine.

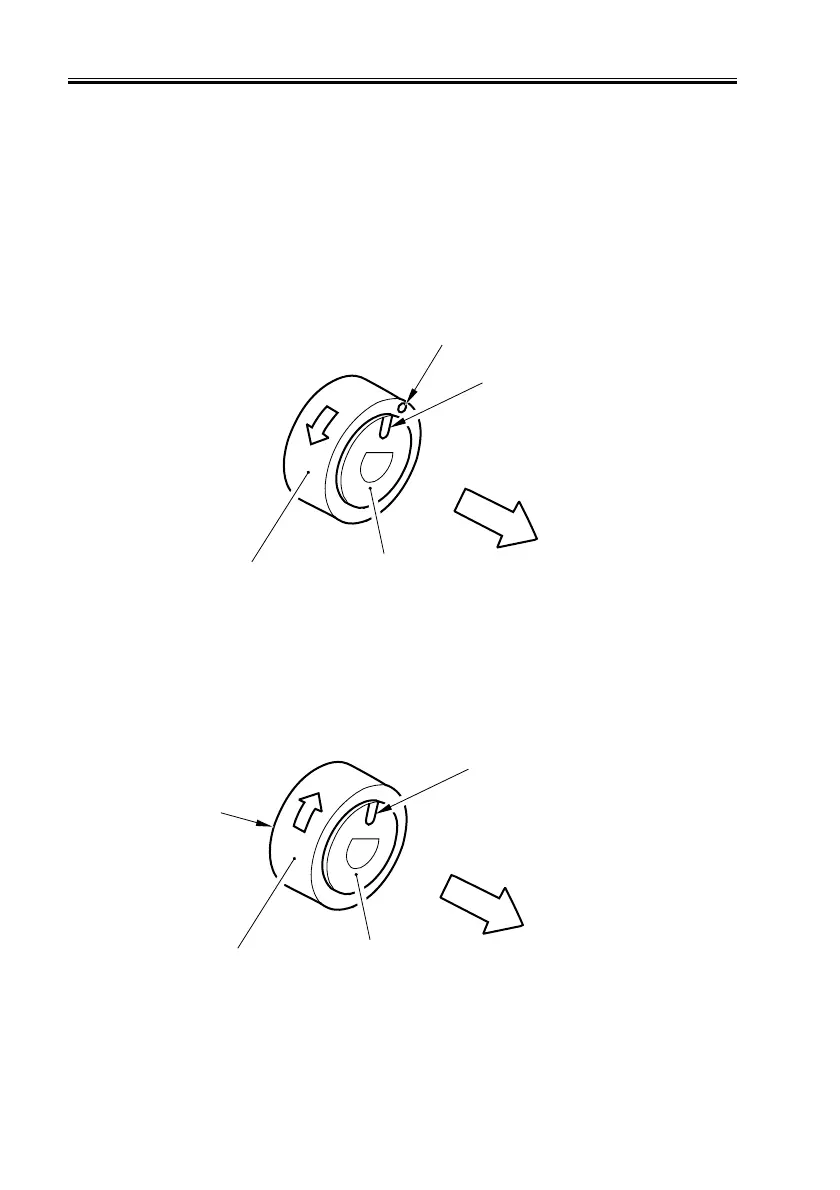

F06-204-01
• The rear pickup roller is silver-colored. When mounting the pickup roller [4] to the pickup
assembly, be sure that the round marking [5] on the side of the roller and the round mark-
ing [6] on the collar (silver-colored) are toward the rear of the machine.
F06-204-02
(direction of
rotation)
[1]
Collar (gold-colored)
(front of machine)
[2]
[3]
(direction of
rotation)
Collar (silver-colored)
(rear of machine)
[4]
[5]
[6]
