CHAPTER 2 NEW FUNCTIONS
2-143
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

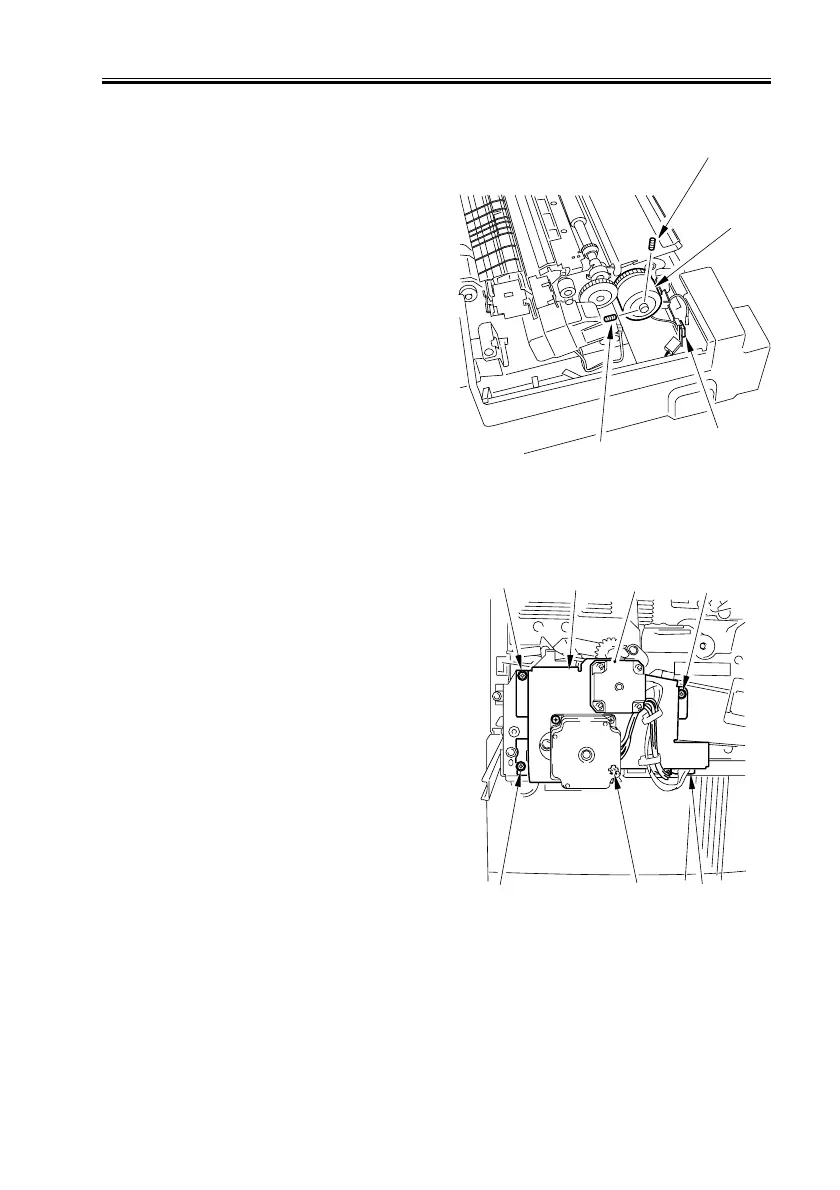

b. Removing the Registration Brake Clutch
1) Remove the transfer separation charging
assembly front cover (1 screw).
2) Disconnect the connector [1], and
loosen the 2 screws [2] (w/ hex hole);
then, detach the registration brake
clutch [3].
F02-805-21
8.5.4 Duplexing Unit
a. Removing the Reversal Motor
1) Remove the front cover of the
duplexing unit.
2) Disconnect he two connectors [1], and
remove the four screws [2] then, detach
the reversal motor [3] together with the
motor support plate [4].
F02-805-22
[1]
[2]
[2]
[3]
[2]
[2]
[4]
[2]
[3]
[2]
[1]
To Next Page
