COPYRIGHT
©
2001 CANON INC
.
2000 2000 2000 2000
CANON iR8500/7200 REV
.1 AUG.
2001
CHAPTER 6
TR
OUBLESHOO
TING
6-25

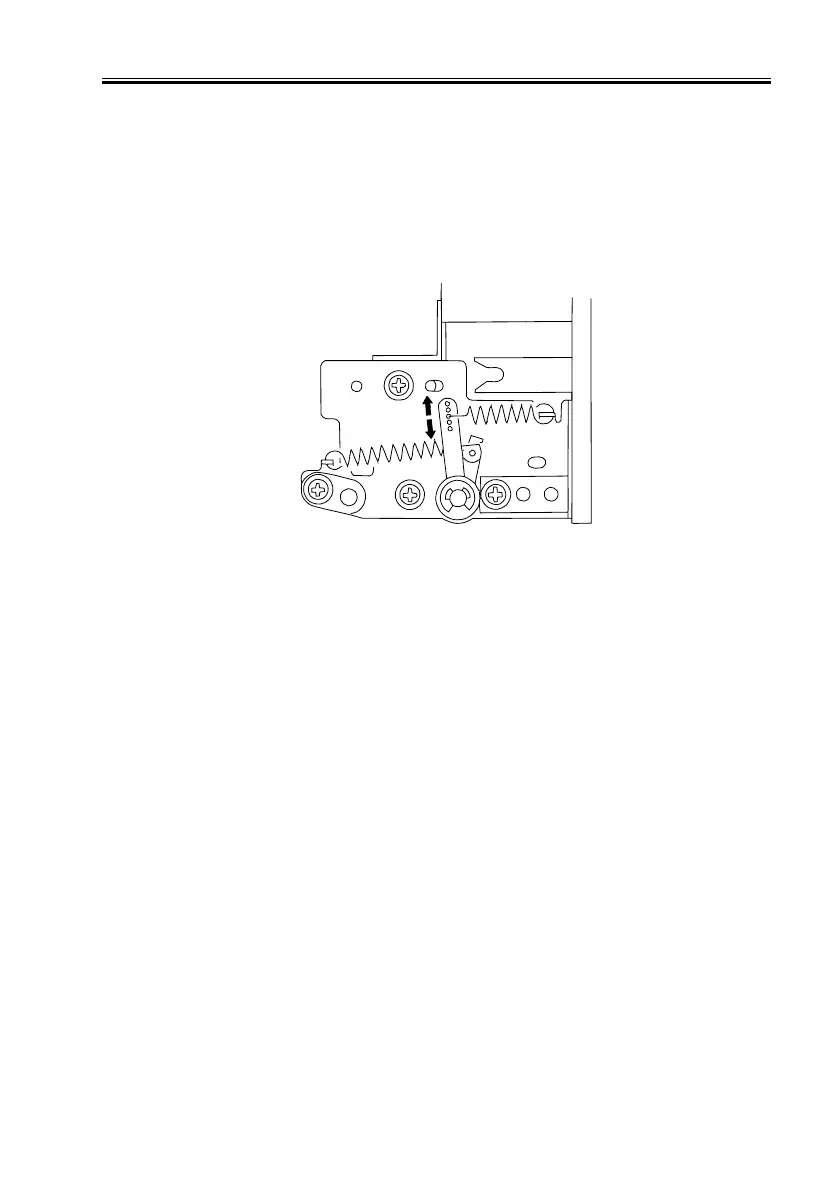

2.4.8 Adjusting the Pressure of the Pickup/F
eeding Roller of the Manual
F
eed T
ra
y
If double feeding or pickup failure occurs during pickup, adjust the position of the separa-
tion roller:
•
If double feeding occurs, move the hook of the spring in the direction of
A.
•
If pickup failure occurs, move the hook of the spring in the direction of B.
F06-204-10
B
A
427
429
