2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
CHAPTER 6 TROUBLESHOOTING
6-14

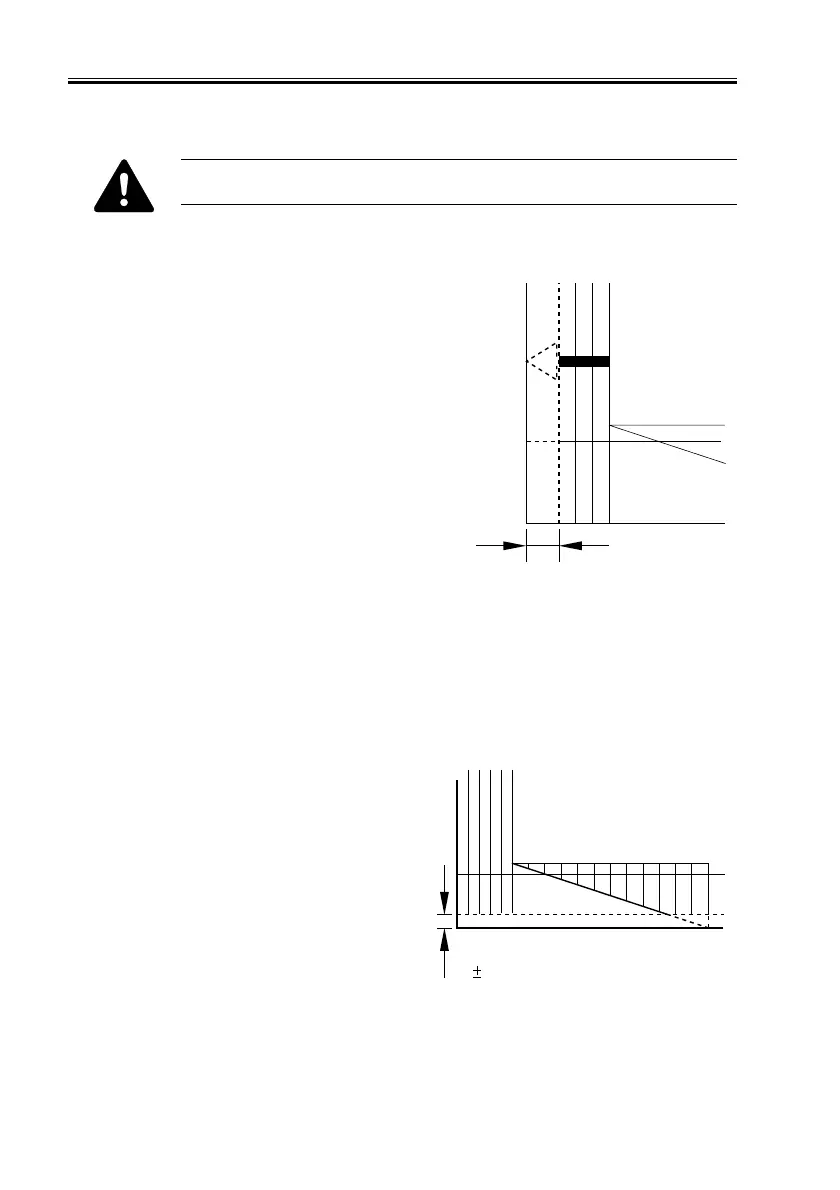

2.1.2 Adjusting the Image Position for Copier Output (book mode)
Be sure to complete the image adjustment for printer output before starting
the following work.
1) Adjusting the Leading Edge Non-Image Width
Place the NA3 Test Chart on the copyboard glass, and make a copy of it to check the
leading edge non-image width.
Standard: 4 +1.5, −1.0 mm
Mode: COPIER>ADJUST>ADJ-XY>ADJ-X
• A higher setting increases the margin.
• A lower setting decreases the margin.
F06-201-09
2) Adjusting the Front Non-Image Width
Place the NA3 Test Chart on the copyboard, and make a copy of it to check the front
non-image width.
Standard: 2.5 ±1.5 mm
Mode: COPIER>ADJUST>ADJ-XY>ADJ-Y
• A higher setting increases the margin.
• A lower setting decreases the margin.
F06-201-10
4+1.5mm,-1.0mm
2.5 1.5mm
0
2
4
6
8
10
12
To Next Page
