3.2 Unpacking
F04-302-01
F04-302-02
F04-302-03

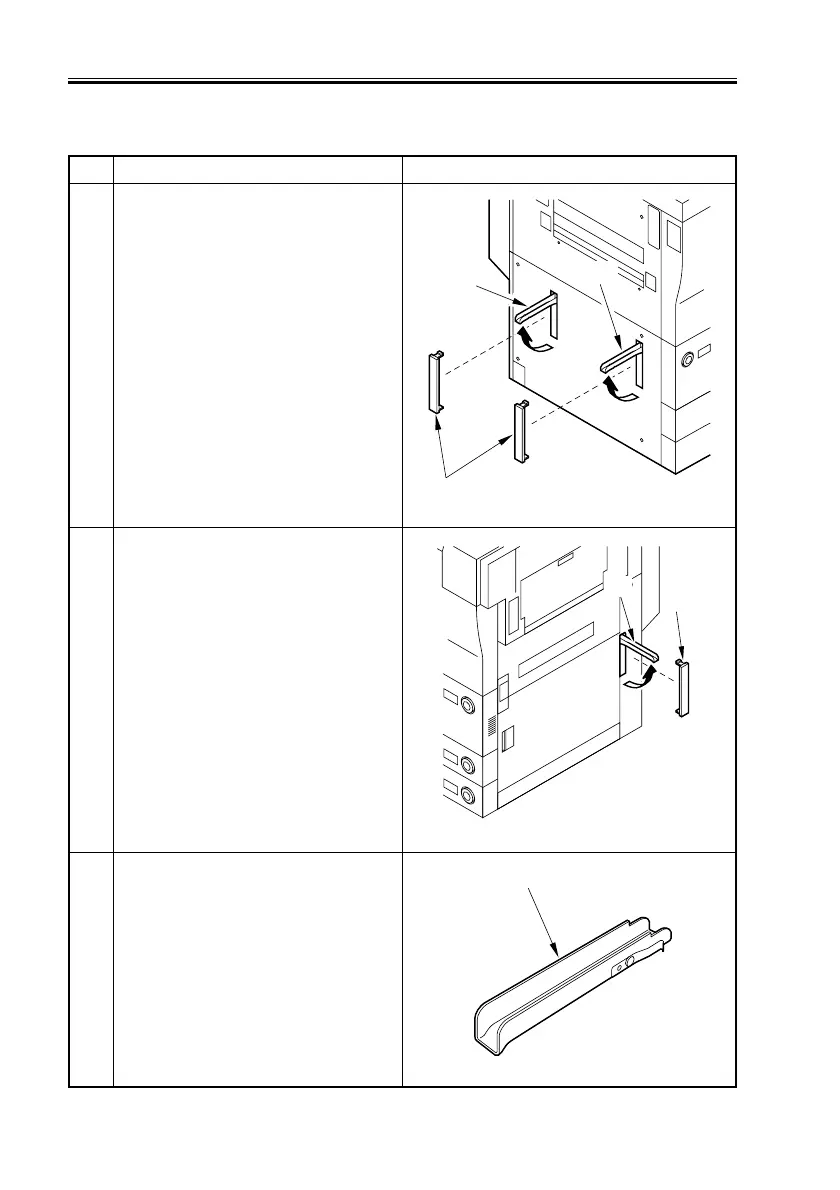

1 Unpack the copier.
Open the plastic bag.
Insert a flat-blade screwdriver into the top
of the grip cover [1] (2 pc.) on the left side
of the machine, and detach the cover.
Shift up the grips [2].
2 Detach the grip cover [1] on the right side
of the machine (using a flat-blade
screwdriver), and shift up the grip [2] at
the rear.
3 Take out the grip [1] from the box that
comes with the machine.
No. Work Checks/remarks
[1]
[2]
[2]
[2]
[1]
