CHAPTER 2 NEW FUNCTIONS

2-166

2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

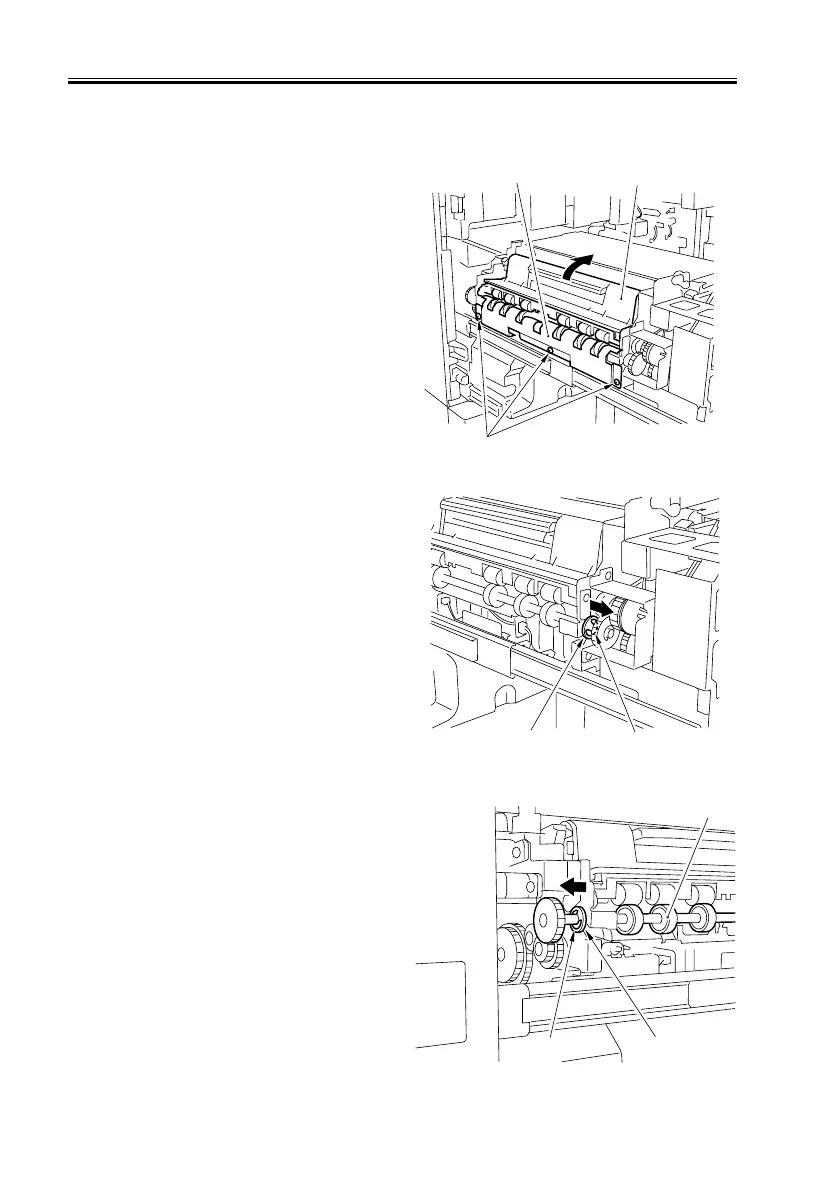

9.9.3 Delivery Assembly

a. Removing the External Delivery Roller

1) Remove the fixing assembly.

2) Remove the 3 screws [1]; then, while

opening the upper delivery assembly

[2], remove the delivery roller guide [3].

F02-909-23

3) Remove the E-ring [1] at the front, slide

the bearing [2] in the direction of the

gear.

F02-909-24

4) Remove the E-ring [1], and slide the

bearing [2] toward the rear; then, detach

the external delivery roller assembly

[3].

F02-909-25

[3]

[2]

[1]

[2]

[1]

[2]

[1]

[3]
