CHAPTER 2 NEW FUNCTIONS
2-108
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
7 Image Formation System
7.1 Outline
F02-701-01 shows the major components of the image formation system, and F02-701-02
shows the basic sequence of operations:
The major changes made in the image formation system include the following:
• Photosensitive drum
• Pre-transfer exposure LED (addition)
• Developing unit overheating preventive mechanism
For other items, see T02-702-01 (comparison table).

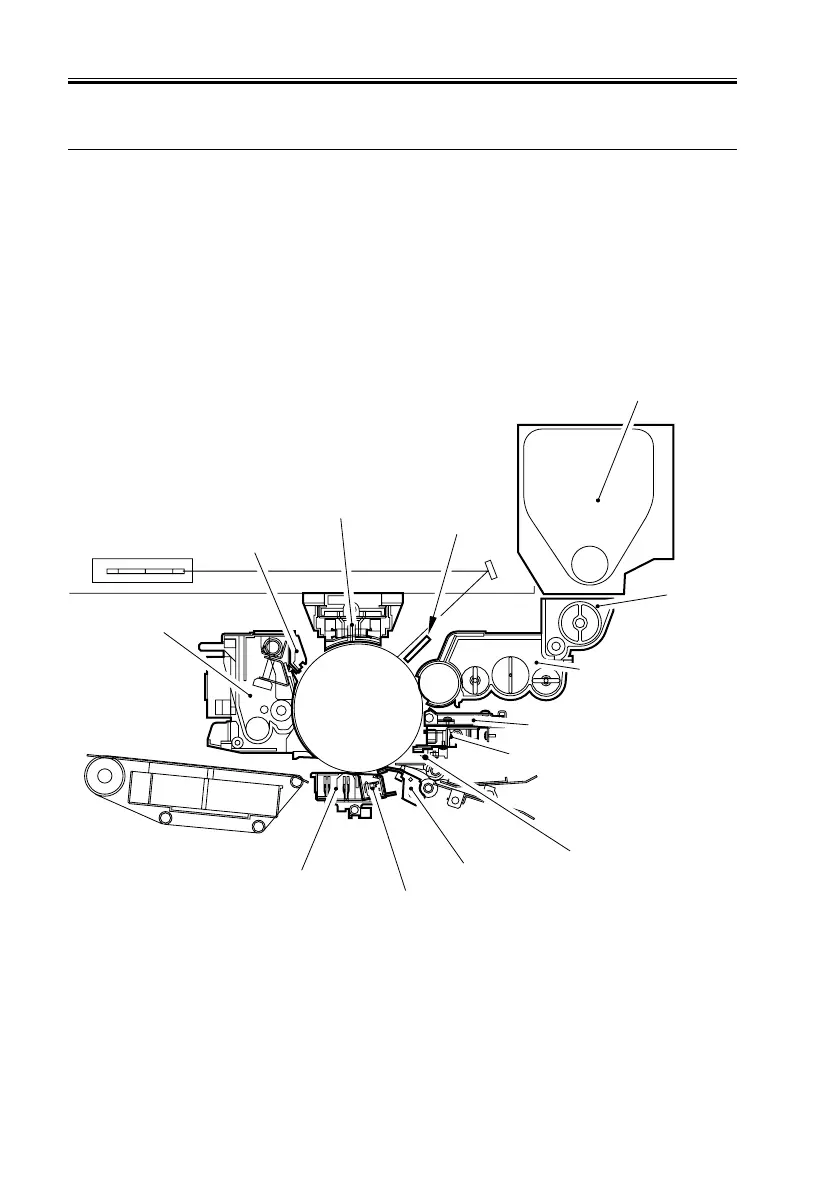

F02-701-01
Toner cartridge
Developing assembly
Hopper
Dust-collecting roller
Pre-transfer charging assembly
Transfer guide
Transfer charging assembly
Separation charging assembly
Cleaner unit
Pre-exposure LED
Primary charging assembly
Potential sensor
Pre-transfer exposure LED
To Next Page
