10.2 Fans

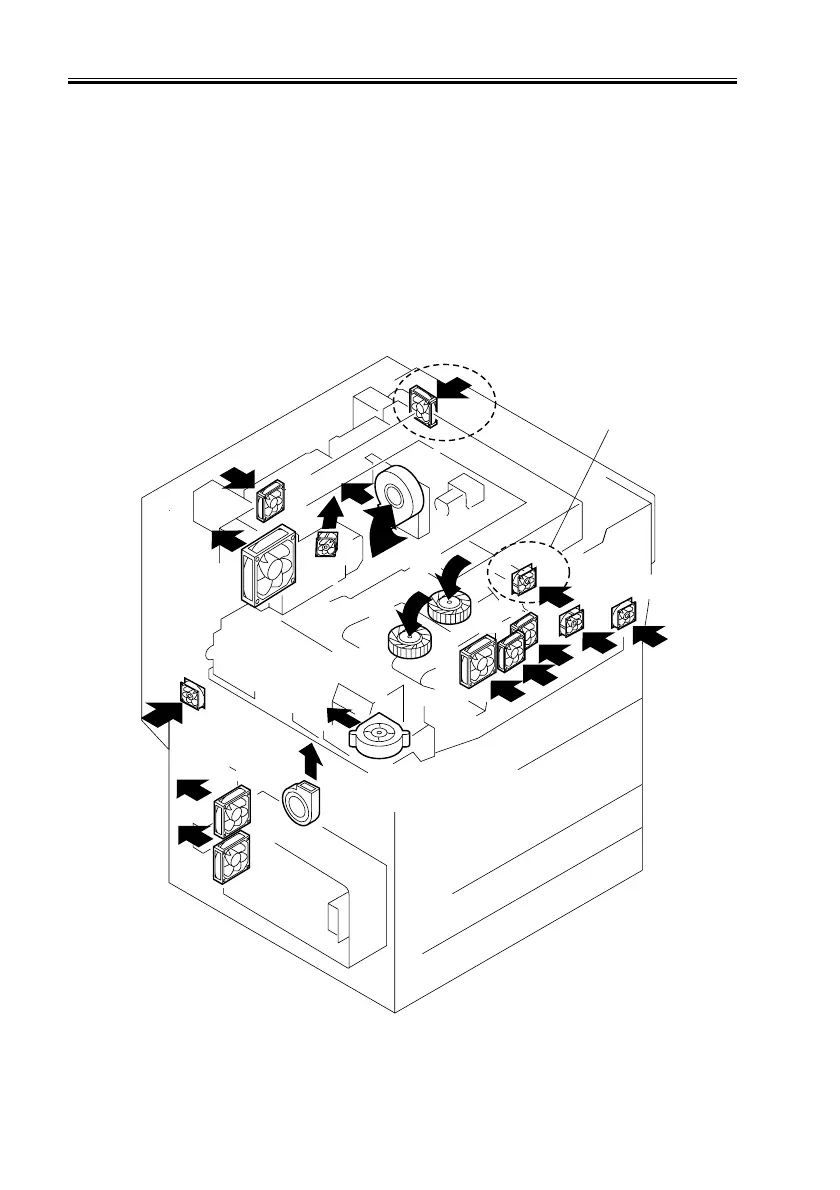

F02-1002-01 shows the arrangement of the machine’s fans and the directions of current.
T02-1002-01 shows the names and the functions of the fans:
The following fans are newly used:
[15] Development fan (FM15)
[16] System fan (FM16)
[17] Deliver adhesion-proofing fan (FM17)
[18] Scanner motor fan (FM20) (iR8500 only)
