COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
CHAPTER 6 TROUBLESHOOTING
6-32
[1]
[1]
[2]
[2]
[1]
A
View from A
34.5±0.5mm

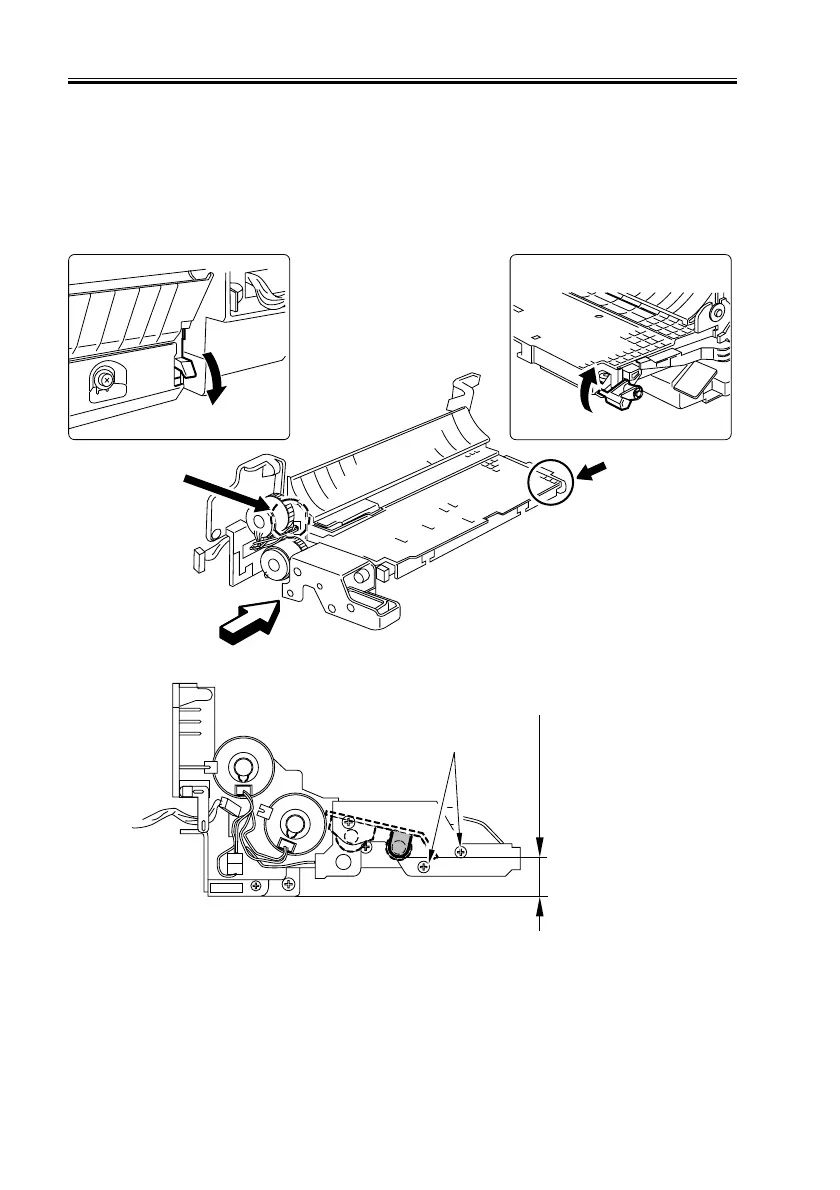

2.4.14 Position of the Deck (right) Pickup Solenoid (SL7)
Adjust the position using the screw [1] so that when [1] and [2] in the following figure are
operated and the plunger of the pickup roller releasing solenoid is pulled, the distance from
the bottom of each pickup unit to the bottom edge of the bushing of the roller support plate
is 34.5 ±0.5 mm.
F06-204-18
To Next Page
