4.2 Control Panel
* Press to indicate the counter reading on the touch panel.

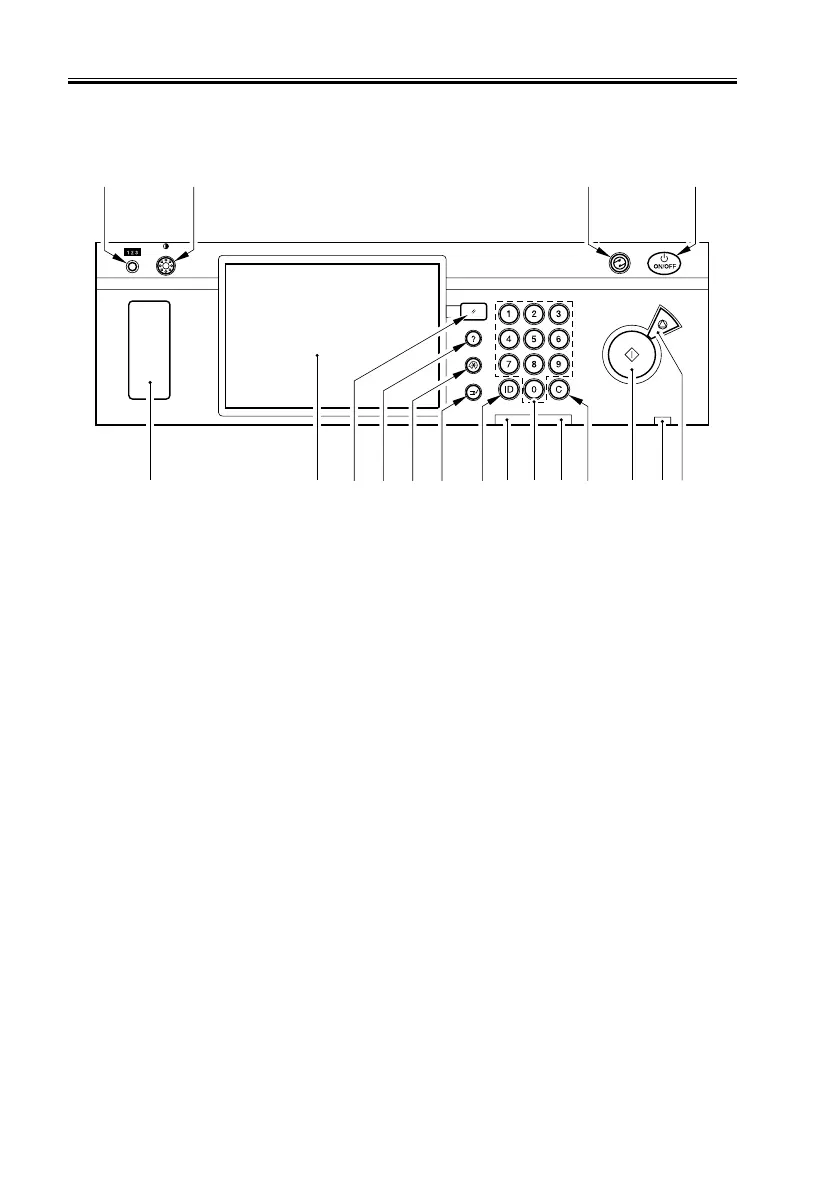

F01-402-01
[1] Counter Check key*
[2] Image Contrast dial
[3] Power Save key
[4] Control panel power switch
[5] Stop key
[6] Main Power lamp
[7] Start key
[8] Clear key
[9] Error lamp
[10] Number keys
[11] Operation/Memory lamp
[12] ID key
[13] Interrupt key
[14] User Mode key
[15] Guide key
[16] Reset key
[17] Touch panel display
[18] Clip dent
[1] [2] [3] [4]
[5][6][7][8][9][10][11][12][13][14][15][16][17][18]
Energy Save
Stop
Start
Reset
Processing/
Data
Guide
Interrupt
Additional
Function
Error
Main Power
lamp
Display Contrast
