CHAPTER 2 NEW FUNCTIONS
2-83
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

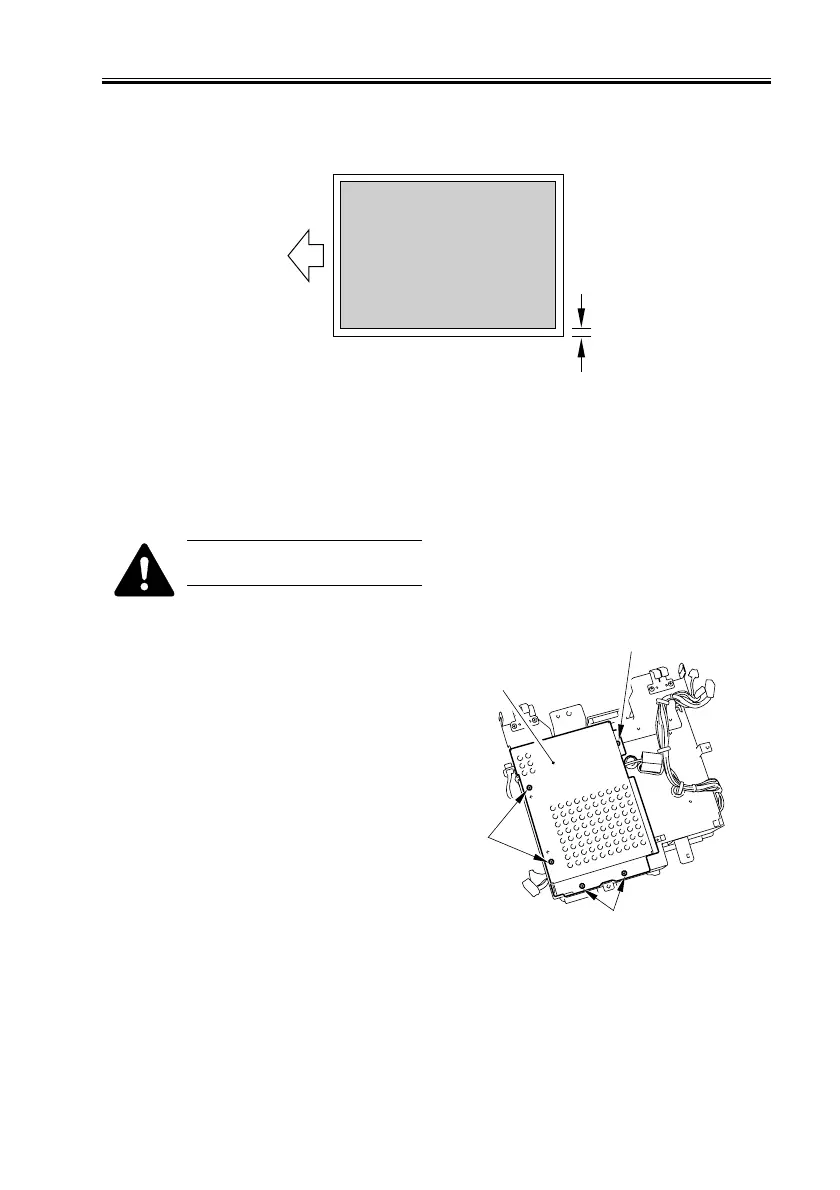

Feeder Mode
C: COPIER>ADJUST>ADJ-Y-DF
F02-408-04
9) Execute the following in service mode to print out a service label, and store away the
service label in the service book case.
4.8.2 Hard Disk
As Hard Disks are susceptible
to vibration, handle with care.
a. Removing the Hard disk
1) Remove the main control box.
2) Remove the 5 screws [1], and detach the
cover [2].
F02-408-05
C
[2]
[1]
[1]
[1]
To Next Page
