CHAPTER 2 NEW FUNCTIONS
2-227
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
11 Side Paper Deck
11.1 Outline
The side paper deck allows placement of 3500 sheets of paper (A4/LTR/B5; 80 g/m
2
) at a
time, and is designed to feed paper in response to the control signals from the DC controller
PCB.
F02-1101-01 shows the basic construction of the side paper deck; F02-1101-02 shows the
basic sequence of operations, while F02-1101-03 shows the control mechanism.
The differences from the GP605 are found in relation to the machine’s higher speed of
operation, as found in the higher rotation speed of the motor.

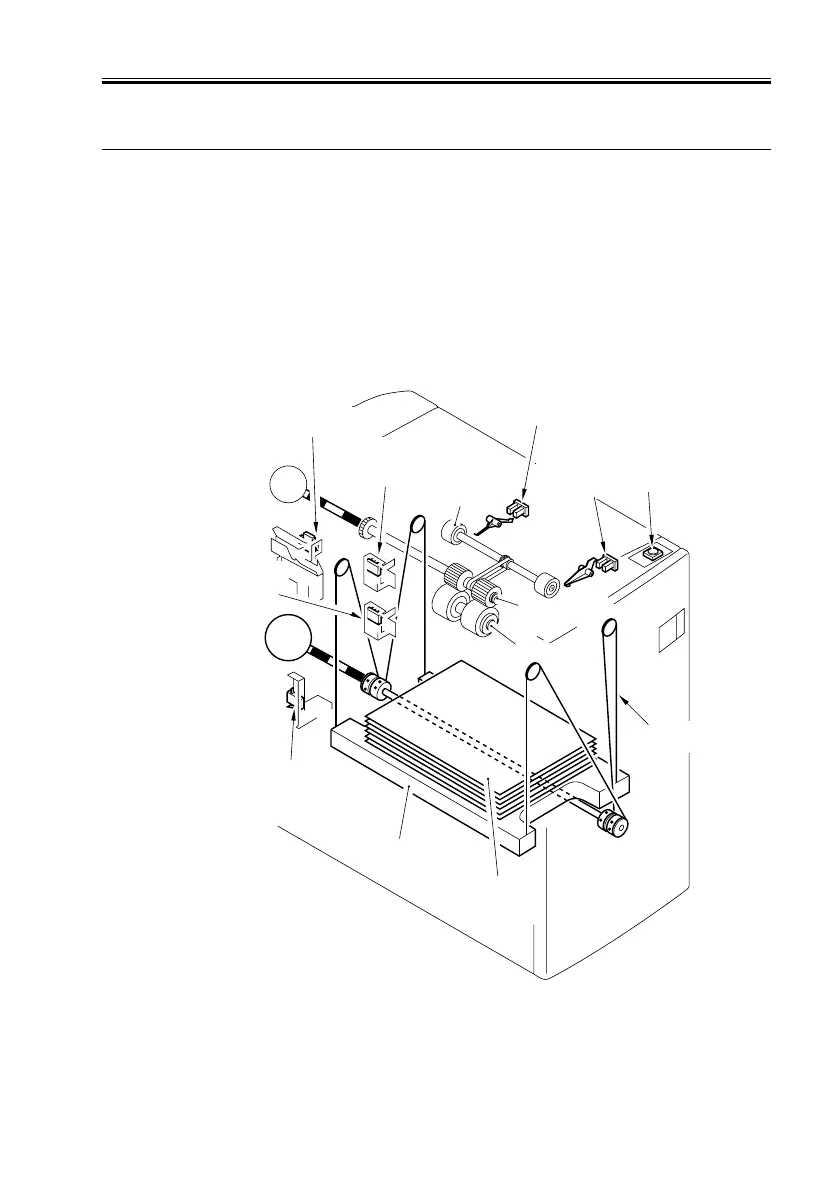

F02-1101-01
M102
Paper
M101
Deck pickup
roller
Deck pickup/feeding
roller
Deck separation roller
Lifter
Deck lifter motor
Deck main motor
Deck open
detecting switch
(SW101)
Deck paper supply
position sensor
(PS107)
Deck lifter
position sensor
(PS104)
Deck lifter
upper limit
sensor
(PS103)
Deck open
switch
(SW100)
Deck lifter lower
limit detecting stitch
(SW102)
Deck lifter
cable
Deck paper
level sensor
(PS108)
To Next Page
