COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
CHAPTER 6 TROUBLESHOOTING
6-106
4.1.21 E069
Mounting condition
1) Is the transfer/separation charging assembly mounted securely?
NO: Mount it securely.
Connection
2) Are the following connectors on the HV-DC PCB normal? Further,
are the screws fitted normally?
• T701
• J723
• J730
NO: Correct the connection.
Wiring
3) Is the wiring from the HV-DC PCB to the transfer/separation
charging assembly (transfer charging assembly side) normal?
NO: Correct the wiring.
HV-DC PCB, Transfer/serration charging assembly
4) Try replacing the HV-DC PCB. Is the problem corrected?
NO: Replace the transfer/separation charging assembly.
YES: End.

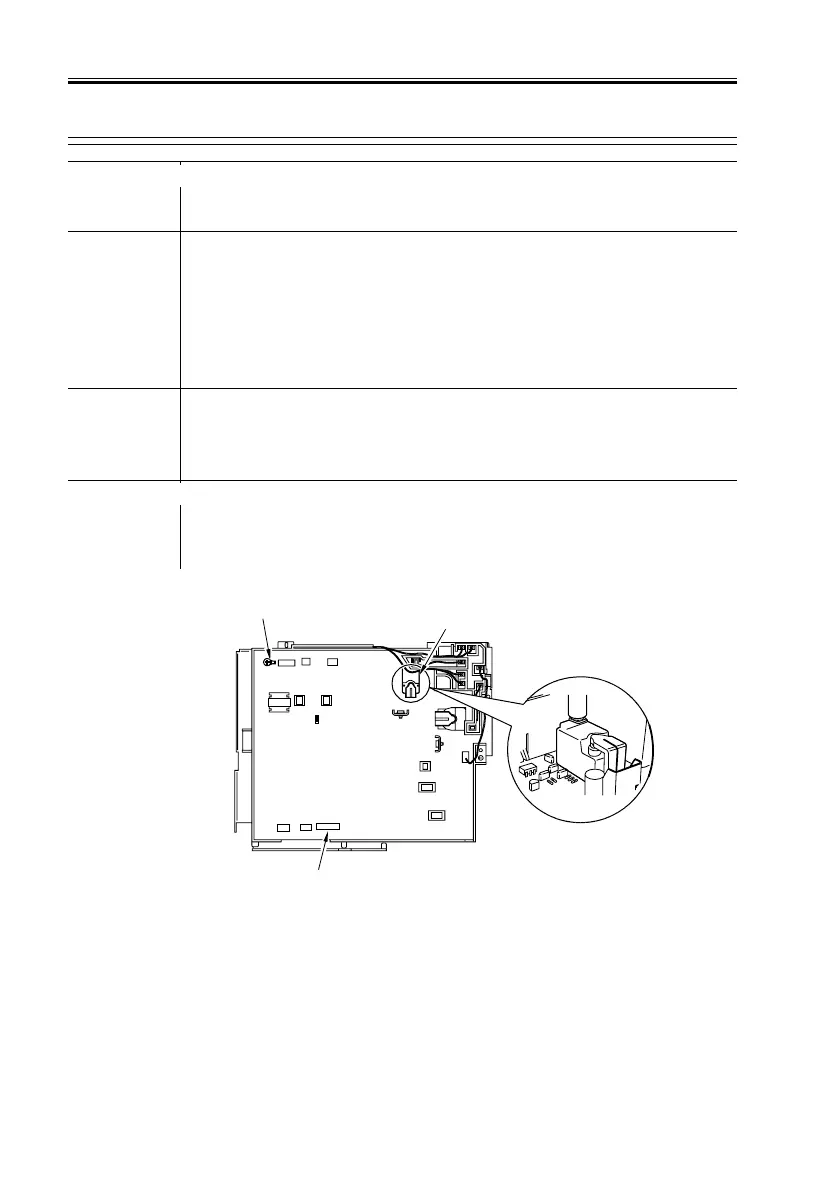

F06-401-05
J723
J730
T701
To Next Page
