CHAPTER 2 NEW FUNCTIONS
2-157
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

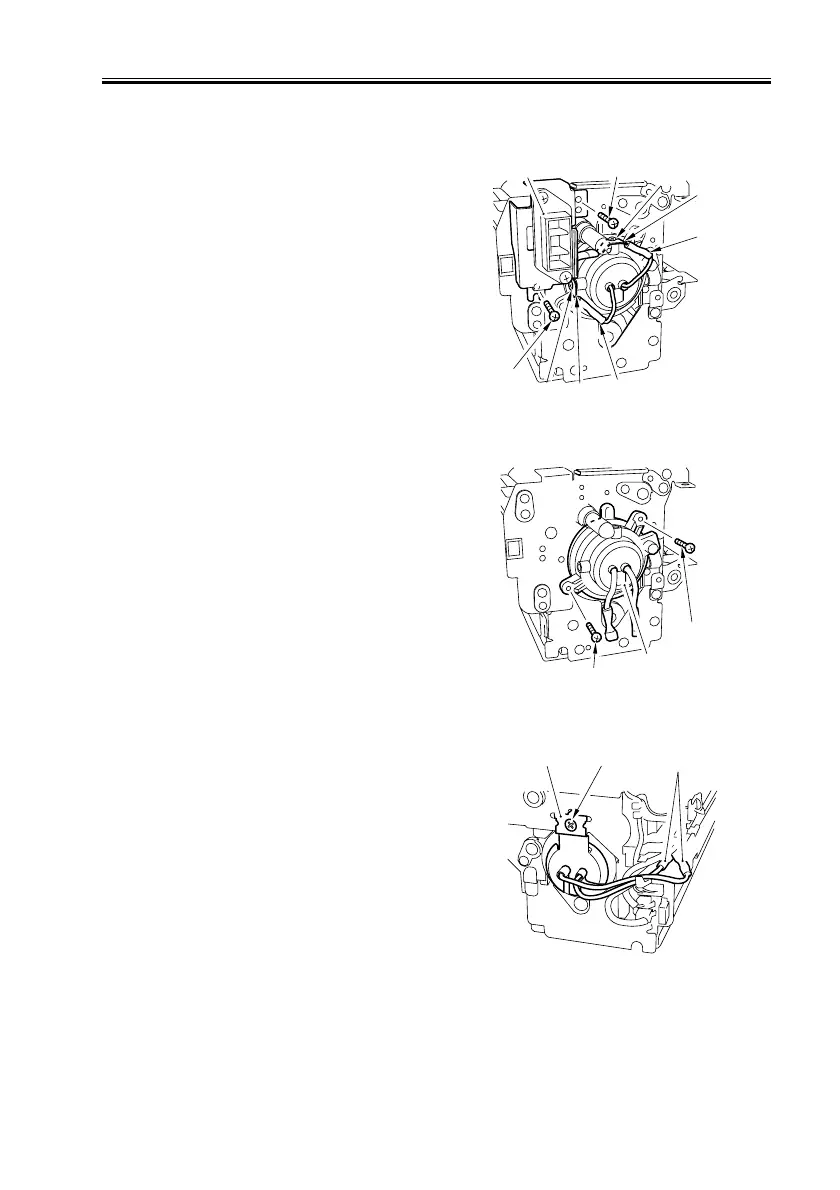

9.9.1 Fixing Heater and the Control Parts
a. Removing the Main/Sub Heater
1) Remove the fixing assembly.
2) Remove the 2 screws [1], and detach the
fixing connector unit [2]; then, remove
the screw [3] and the terminal plate [4]
at the rear to pull out the faston [5] (2
locations).
F02-909-01
3) Remove the 2 screw [1], and detach the
heater positioning plate (rear) [2].
F02-909-02
4) Remove the 2 fastons [1] at the front,
and remove the screw [2] to detach the
heater positioning plate (front) [3].
F02-909-03
5) Remove the main/sub heater.
[1]
[1]
[2]
[3]
[5]
[4]
[3]
[4]
[5]
[1]
[1]
[2]
[3]
[2]
[1]
