9.4 Transparency Mode
To prevent the wrapping of a transparency around the fixing roller (causing the heat of the
fixing roller to melt the transparency), the surface temperature of the fixing roller is reduced
in transparency mode. F02-904-01 shows the sequence of operations in transparency mode:

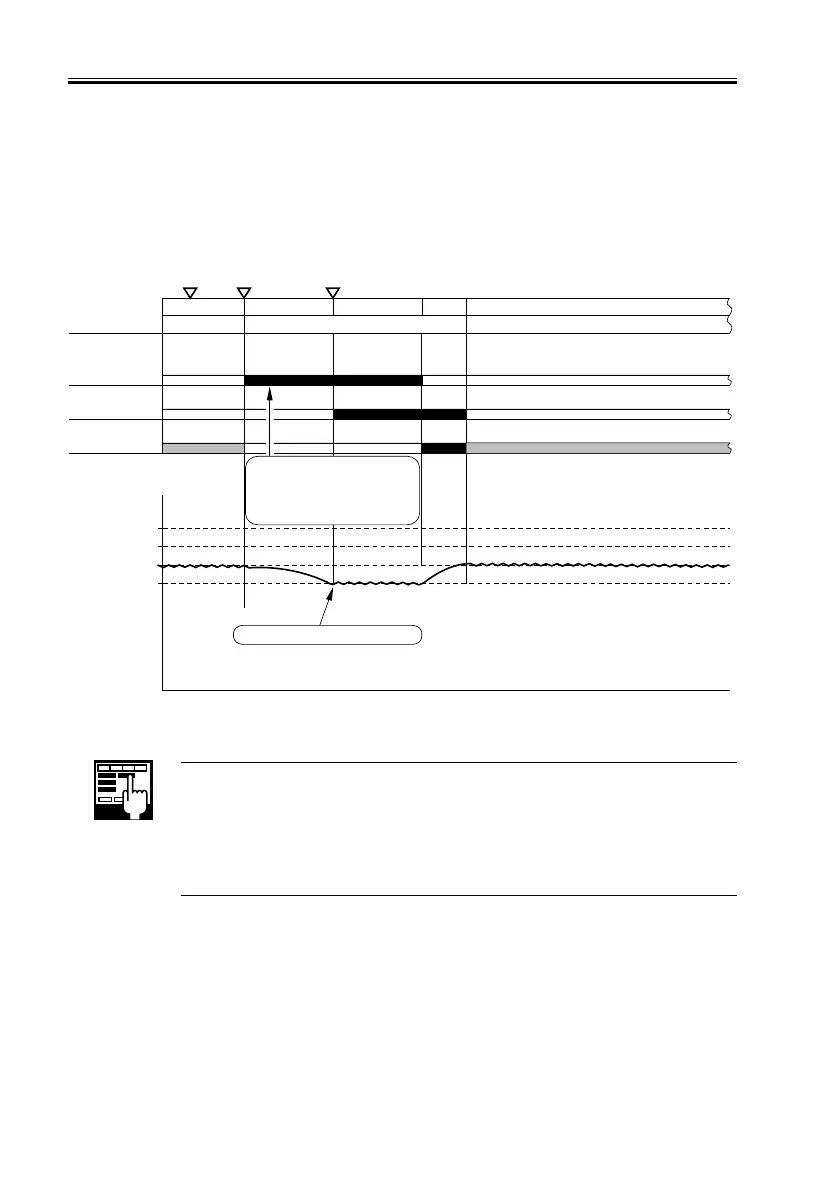

F02-904-01
COPIER>OPTION>BODY>OHP-TEMP
(switching of temperature setting in transparency mode)
0: 198°C [default]
1: 193°C
2: 188°C
3: 183°C
WAIT mode Green GreenRed
Fixing motor
(M3)
Main heater
(H1)
Sub heater (H2)
STBY INTR PRINT LSTR STBY
Transparency
mode
selected Start key ON 193˚C
205˚C
200˚C
198˚C
193˚C
Temperature of transparencies
Controlled to
198˚C
Controlled to 198˚C
Controlled to
193˚C
Idle rotation continued until
the surface temperature of
the fixing roller decreases to
that used for transparencies.
